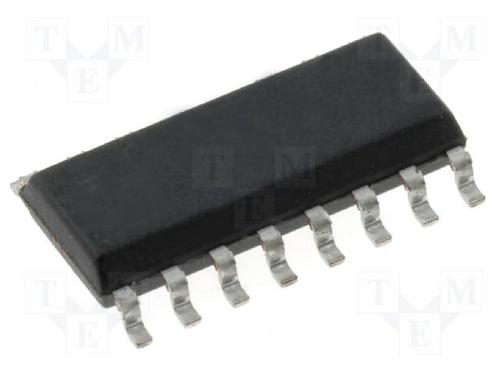

ST62T 系列 8 位 2 KB 闪存 64 B RAM 程序存储器 微控制器 - SOIC-16
The ST6200C, 01C and 03C devices are low cost members of the ST62xx 8-bit HCMOS family of microcontrollers, which is targeted at low to medium complexity applications. All ST62xx devices are based on a building block approach: a common core is surrounded by a number of on-chip peripherals.
The ST62E01C is the erasable EPROM version of the ST62T00C, T01 and T03C devices, which may be used during the development phase for the ST62T00C, T01 and T03C target devices, as well as the respective ST6200C, 01C and 03C ROM devices.
OTP and EPROM devices are functionally identical. OTP devices offer all the advantages of user programmability at low cost, which make them the ideal choice in a wide range of applications where frequent code changes, multiple code versions or last minute programmability are required.
The ROM based versions offer the same functionality, selecting the options defined in the program mable option bytes of the OTP/EPROM versions in the ROM option list See Section 12.6 on page 92.
The ST62P00C, P01C and P03C are the Factory Advanced Service Technique ROM FASTROM versions of ST62T00C, T01 and T03C OTP devices.
They offer the same functionality as OTP devices, but they do not have to be programmed by the customer See Section 12 on page 86.
These compact low-cost devices feature a Timer comprising an 8-bit counter with a 7-bit programmable prescaler, an 8-bit A/D Converter with 4 analog inputs depending on device, see device summary on page 1 and a Digital Watchdog timer, making them well suited for a wide range of automotive, appliance and industrial applications.
For easy reference, all parametric data are located in Section 11 on page 58.
**Key Features**
电源电压DC 5.00 V, 6.00 V max
时钟频率 8 MHz
RAM大小 64 x 8
位数 8
耗散功率 500 mW
FLASH内存容量 2 KB
I/O引脚数 9
存取时间 8.00 µs
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 500 mW
电源电压 3.6 VDC
电源电压Max 6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
封装 SOIC-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ST62T01CM6 ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
ST62T01CB6 意法半导体 | 类似代替 | ST62T01CM6和ST62T01CB6的区别 |
ST62T01CM3 意法半导体 | 功能相似 | ST62T01CM6和ST62T01CM3的区别 |
ST62T01CB3 意法半导体 | 功能相似 | ST62T01CM6和ST62T01CB3的区别 |
