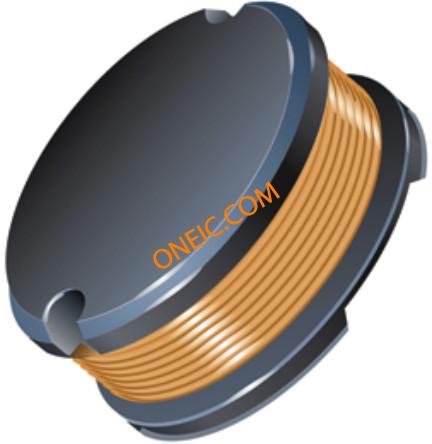

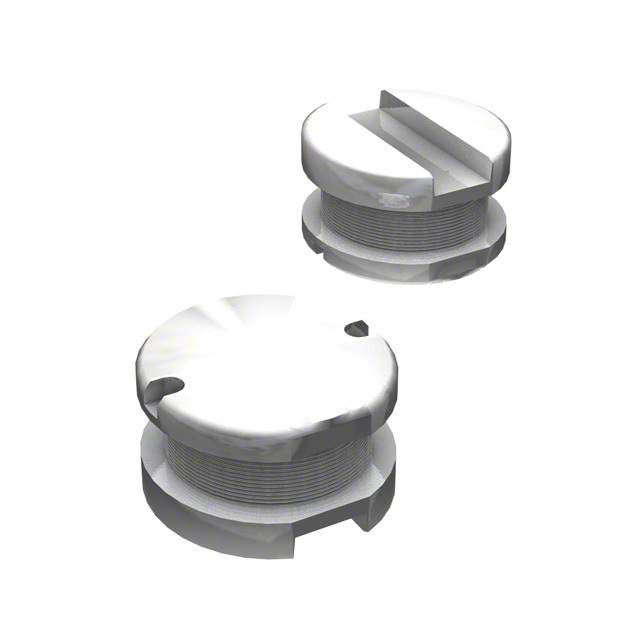

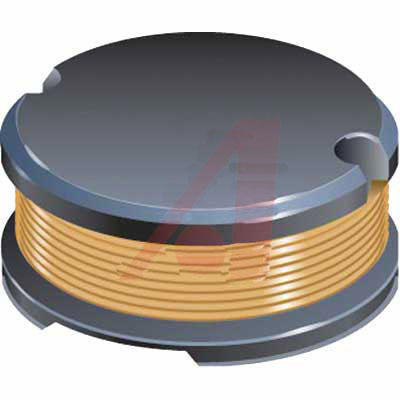

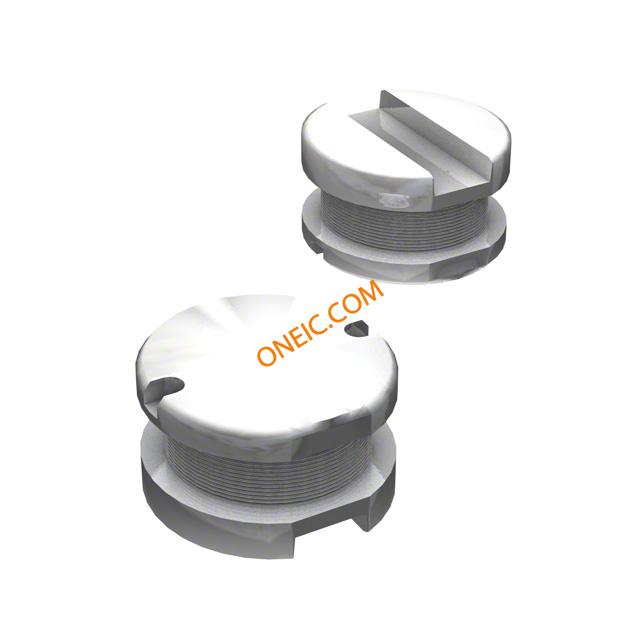

SDR1006-471KL

BOURNS  SDR1006-471KL  表面贴装功率电感器, SDR1006系列, 470 µH, ± 10%, 非屏蔽, 1.48 ohm, 420 mA

SDR1006 系列线绕扼流圈

提供 E12 系列

小型设计，最大直径仅 9.8mm

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 470UH 420MA 1.48OHM SM

立创商城:
470uH ±10% 420mA 1.48Ω

欧时:
### SDR1006 系列线绕扼流圈提供 E12 系列 小型设计，最大直径仅 9.8mm 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

e络盟:
功率电感SMD, 470 µH, 420 mA, 非屏蔽, 800 mA, SDR1006 Series, 9.8mm x 9.8mm x 5.8mm

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power SDR1006-471KL surface mount inductor from Bourns is perfect for you! This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has an inductance of 470u H. This product is 5.8 mm tall with a diameter of 9.8 mm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 2.5M Hz. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 420m A with a maximum resistance of 1.48 Ohm. It has a tolerance of 10%.

Allied Electronics:
Inductor; Filter; Ind 470uH; Tol 10%; Cur 0.42A; Power SMT; Case1006; DCR 1.48 Ohms

安富利:
Ind Power Wirewound 470uH 10% 1KHz 12Q-Factor Ferrite 420mA T/R

Chip1Stop:
Ind Power Wirewound 470uH 10% 1KHz 12Q-Factor Ferrite 420mA T/R

TME:
Inductor: wire; SMD; 470uH; 420mA; ±10%; Q:12; Ø:10mm; H:6mm; 1.48Ω

Verical:
Inductor Power Unshielded Wirewound 470uH 10% 1KHz 12Q-Factor Ferrite 0.42A 1.48Ohm DCR T/R

Newark:
# BOURNS  SDR1006-471KL  Surface Mount Power Inductor, SDR1006 Series, 470 µH, 420 mA, 800 mA, Unshielded, 1.48 ohm

MASTER:
Inductor Power - Wirewound - 9.8 x 9.8 x 5.8mm - 470 uH - 1KHz - 420 mA - 1.48 Ohm.

Online Components:
Inductor Power Wirewound 470uH 10% 1KHz 12Q-Factor Ferrite 420mA 1.48Ohm DCR T/R

Electro Sonic:
Inductor Power - Wirewound - 9.8 x 9.8 x 5.8mm - 470 uH - 1KHz - 420 mA - 1.48 ...

Win Source:
470μH Unshielded Wirewound Inductor 420mA 1.48 Ohm Max Nonstandard
