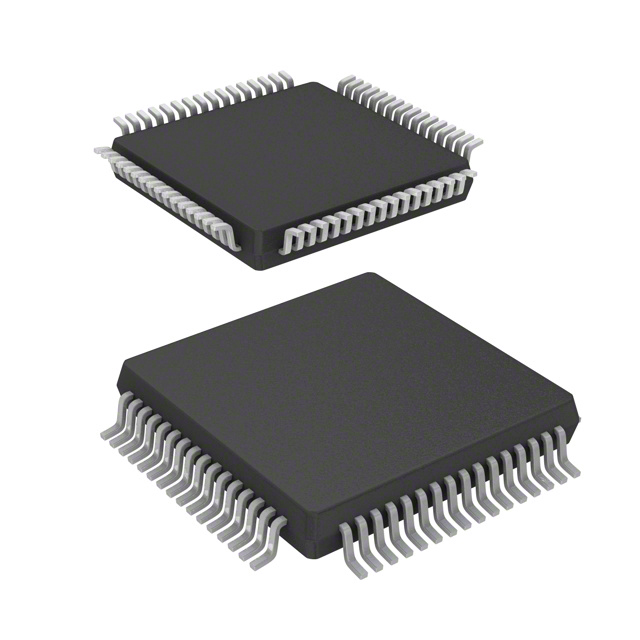

STMICROELECTRONICS STM32L063R8T6 微控制器, 32位, 超低功率, ARM 皮质-M0+, 32 MHz, 64 KB, 8 KB, 64 引脚, LQFP
The is an ultra-low-power STM32 L0 series 32-bit Microcontroller incorporates the connectivity power of the universal serial bus USB 2.0 crystal-less with the high-performance ARM Cortex-M0+ RISC core operating at a 32MHz frequency. It features a memory protection unit MPU, high-speed embedded memories 64kB of Flash program memory, 2kB of data EEPROM and 8kB of RAM plus an extensive range of enhanced I/Os and peripherals. This device provide high power efficiency for a wide range of performance. It is achieved with a large choice of internal and external clock sources, an internal voltage adaptation and several low-power modes.
频率 32 MHz
针脚数 64
时钟频率 32.0 MHz
RAM大小 8 KB
位数 32
耗散功率 444 mW
模数转换数ADC 1
输入/输出数 51 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 444 mW
数模转换数DAC 1
电源电压 1.65V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 64
封装 LQFP-64
封装 LQFP-64
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 Medical, Sensing & Instrumentation, 计量, 视频和目视, Metering, 工业, Computers & Computer Peripherals, 成像, 视频和目视, 医用, 成像, 消费电子产品, Imaging, Video & Vision, 计算机和计算机周边, Consumer Electronics, 安全, 传感与仪器, Security, Communications & Networking, 通信与网络, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 5A992C
香港进出口证 NLR
