SN74LVTH162245DGGR

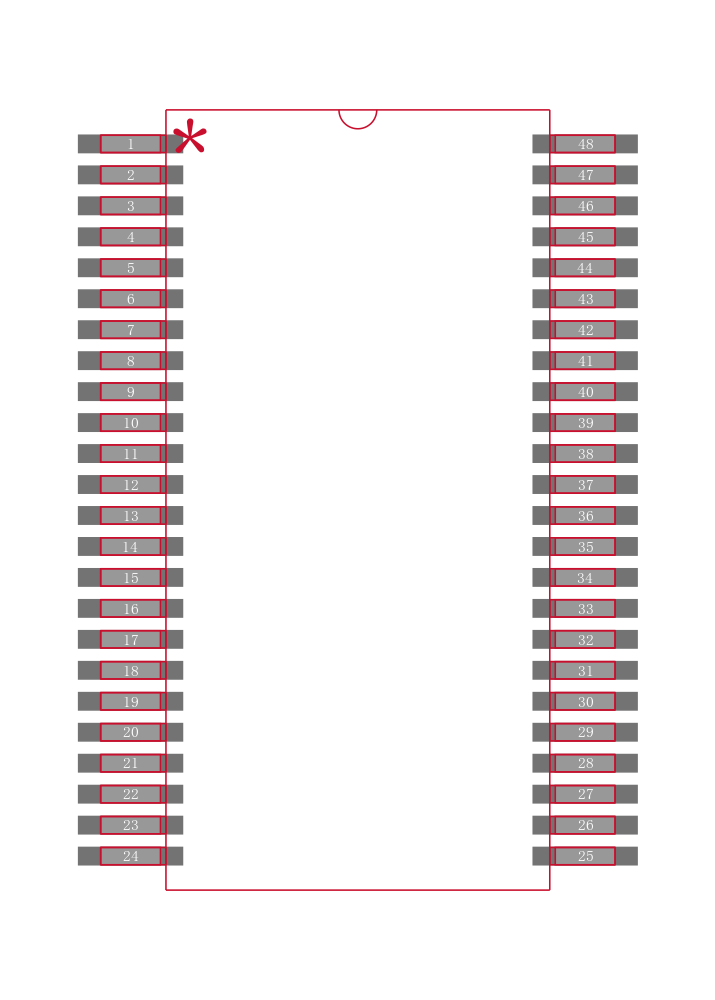

TEXAS INSTRUMENTS  SN74LVTH162245DGGR  收发器, 非反相, 2.7V至3.6V, TSSOP-48

The is a 16-bit dual-octal non-inverting 3-state Bus Transceiver designed for low-voltage 3.3V VCC operation, but with the capability to provide a TTL interface to a 5V system environment. It can be used as two 8-bit transceivers or one 16-bit transceiver. The device allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control DIR input. The logic levels of the direction-control DIR input and the output-enable OE input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports is always active and must have a logic HIGH or LOW level applied to prevent excess ICC and ICCZ.

.

Support mixed-mode signal operation

.

IOFF and power-up 3-state support hot insertion

.

Bus hold on data inputs eliminates the need for external pull-up/pull-down resistors

.

Distributed VCC and GND pins minimize high-speed switching noise

.

Flow-through architecture optimizes PCB layout

.

Latch-up performance exceeds 500mA per JESD 17

.

Support unregulated battery operation down to 2.7V

.

<0.8V at VCC = 3.3V, TA = 25°C VOLP output ground bounce

.

Green product and no Sb/Br
