S6X8TSRP

Teccor®品牌晶闸管EV系列0.8安培敏感可控硅 Teccor® brand Thyristors EV Series 0.8 Amp Sensitive SCRs

Description

New 1.5 Amp sensitive gate SCR series offers high static dv/dt with low turn off time tq through small die planar construction design. All SCR’s junctions are glass passivated to ensure long term reliability and parametric stability.

Features

• RoHS compliant and Halogen-Free

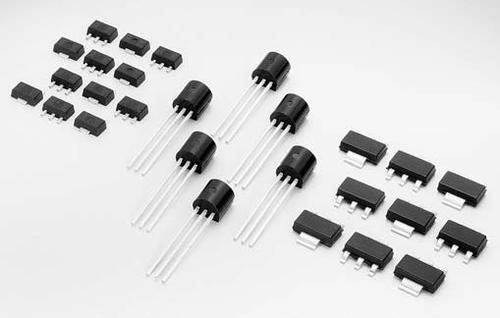

• Thru hole and surface mount packages

• Surge

  capability > 15Amps

• Blocking voltage VDRM/ VRRM capability — up to 600V

• High dv/dt noise immunity

• Improved turn-off time tq < 35 μsec.

• Sensitive gate for direct microprocessor interface

Applications

The Sx02xS EV series is specifically designed for Gas Ignition applications that require high pulse surge currentcapability.
