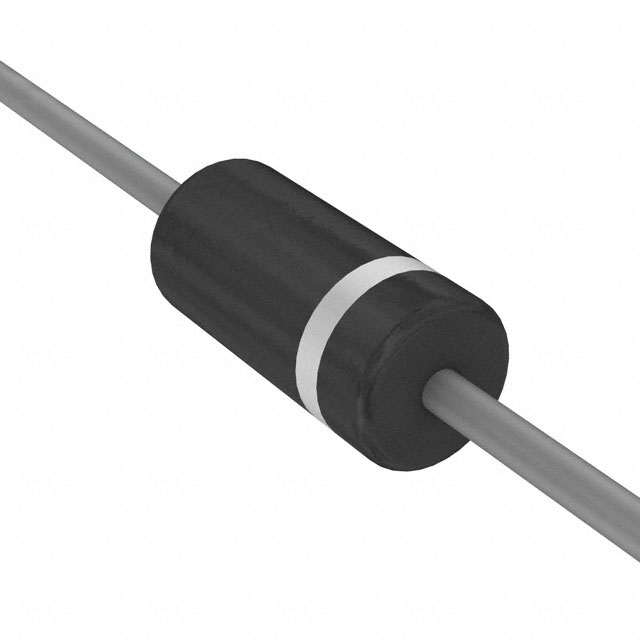

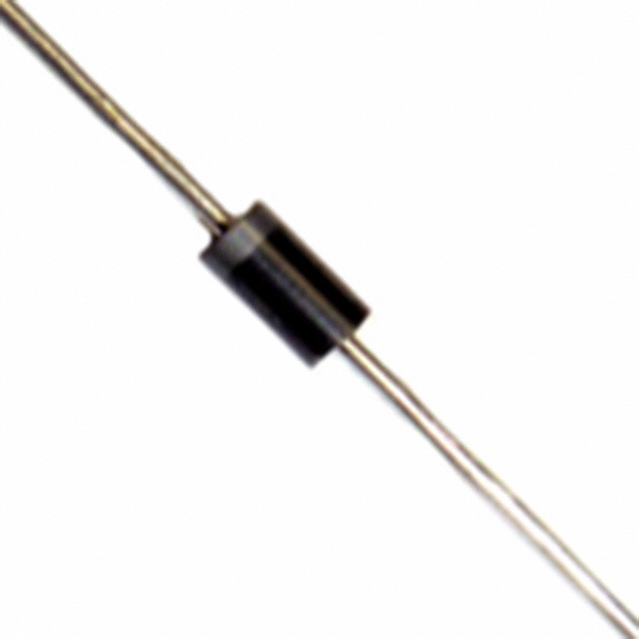

SA12CA-TP

双向 12V 500W

500WATTS TRANSIENT VOLTAGE SUPPRESSOR 5.0 TO 170 VOLTS

Features

•   Glass passivated chip

•   Low leakage

•   Uni and Bidirectional unit

•   Excellent clamping capability

•   UL Recognized file # E331408

•   Lead Free Finish/Rohs Compliant Note1 "P"Suffix designates Compliant. See ordering information

•   Fast Response Time

得捷:
TVS DIODE 12VWM 19.9VC DO15

立创商城:
双向 Vrwm:12V 500W

贸泽:
ESD Suppressors / TVS Diodes BI-DIR 500W 25.6A

艾睿:
If you&s;re worried that your electronic equipment may experience electrical overstress from electrostatic discharge then this SA12CA-TP TVS diode from Micro Commercial Components is perfect for you. Its peak pulse power dissipation is 500 W. This device&s;s maximum clamping voltage is 19.9 V and minimum breakdown voltage is 13.3 V. Its test current is 1 mA. Its maximum leakage current is 1 μA. This TVS diode has an operating temperature range of -55 °C to 175 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.

Chip1Stop:
Diode TVS Single Bi-Dir 12V 500W 2-Pin DO-15 T/R

Win Source:
TVS DIODE 12VWM 19.9VC DO15
