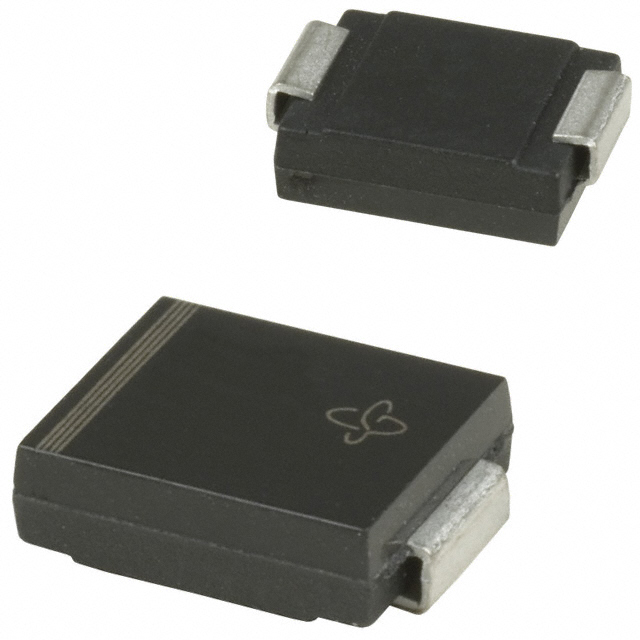

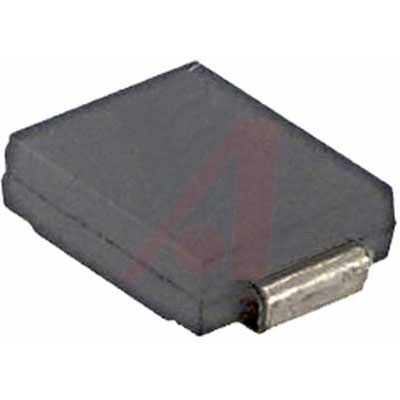

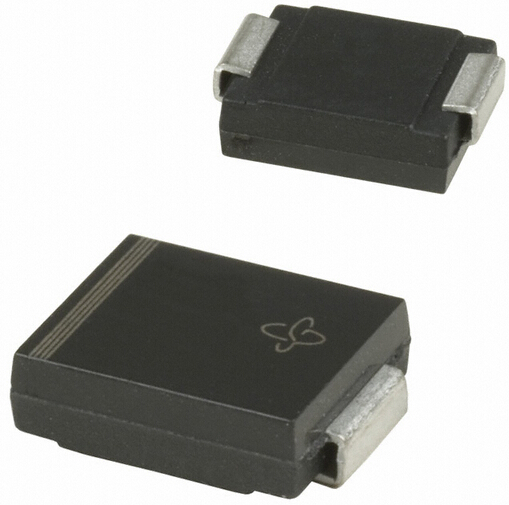

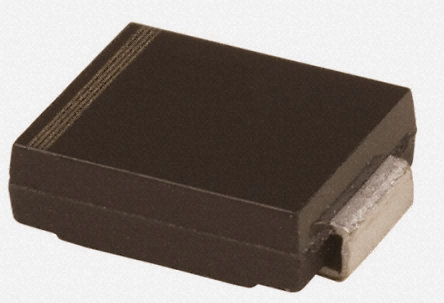

TRANSZORB® 瞬态电压抑制器 SMT 双向 1500W,Vishay Semiconductor ### 瞬态电压抑制器,Vishay Semiconductor
**Features:**
* Low Profile Package
* Ideal for Automated Placement
* Glass Passivated Chip Junction
* Available in Uni-Directional and Bi-Directional
* Excellent Clamping Capability
* Very Fast Response Time
* Low Incremental Surge Resistance
* Meets MSL Level 1, per J-STD-020, LF Maximum Peak of 260°C
* Solder Dip 260°C, 40 s
* Component in Accordance to RoHS 2002/95/EC and WEEE 2002/96/EC **Applications:** Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.
工作电压 150 V
额定电流 6.2 A
击穿电压 167 V
电路数 1
耗散功率 1500 W
钳位电压 243 V
测试电流 1 mA
脉冲峰值功率 1500 W
最小反向击穿电压 167 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温Max 150 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB
重量 0.211 g
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMCJ150CA-E3/57T Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SMCJ150CA-E3/9AT 威世 | 完全替代 | SMCJ150CA-E3/57T和SMCJ150CA-E3/9AT的区别 |
SMCJ150CAHE3/9AT 威世 | 完全替代 | SMCJ150CA-E3/57T和SMCJ150CAHE3/9AT的区别 |
SMCJ150CA-M3/9AT 威世 | 完全替代 | SMCJ150CA-E3/57T和SMCJ150CA-M3/9AT的区别 |
