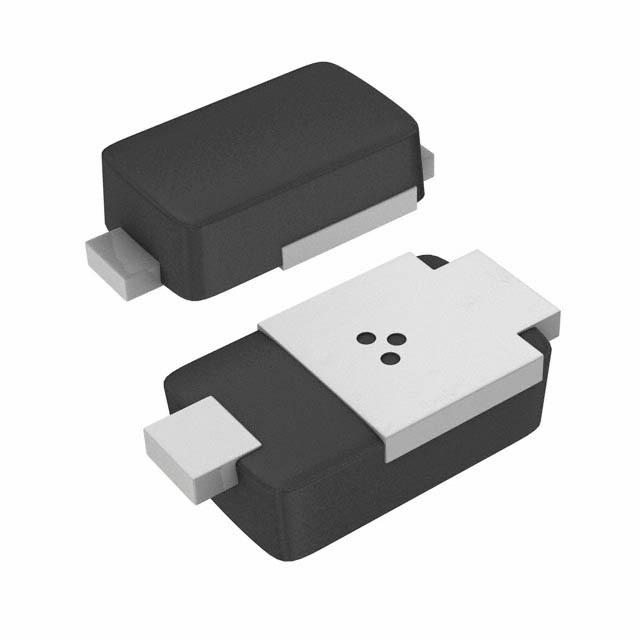

SMM4F系列 400 W 14 V 单向 瞬态电压抑制器 - DO-222AA
25.3V 夹子 91A(8/20µs) Ipp TVS - 表面贴装型 DO222-AA
得捷:
TVS DIODE 12VWM 25.3VC DO222-AA
立创商城:
单向 Vrwm:12V 400W
艾睿:
Prevent your circuits from experiencing malfunctions from electrostatic discharge with this SMM4F12A-TR TVS diode from STMicroelectronics. Its peak pulse power dissipation is 400 W. Its maximum leakage current is 0.2 μA. This device&s;s maximum clamping voltage is 25.3 V and minimum breakdown voltage is 13.3 V. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.
安富利:
Diode TVS Single Uni-Dir 12V 400W 2-Pin1+Tab DO-222AA T/R
Chip1Stop:
Diode TVS Single Uni-Dir 12V 400W 2-Pin1+Tab DO-222AA T/R
工作电压 12 V
额定功率 400 W
击穿电压 13.3 V
电路数 1
耗散功率 400 W
钳位电压 25.3 V
最大反向电压(Vrrm) 12V
测试电流 1 mA
脉冲峰值功率 400 W
最小反向击穿电压 13.3 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-222AA
长度 2.95 mm
宽度 1.9 mm
封装 DO-222AA
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
