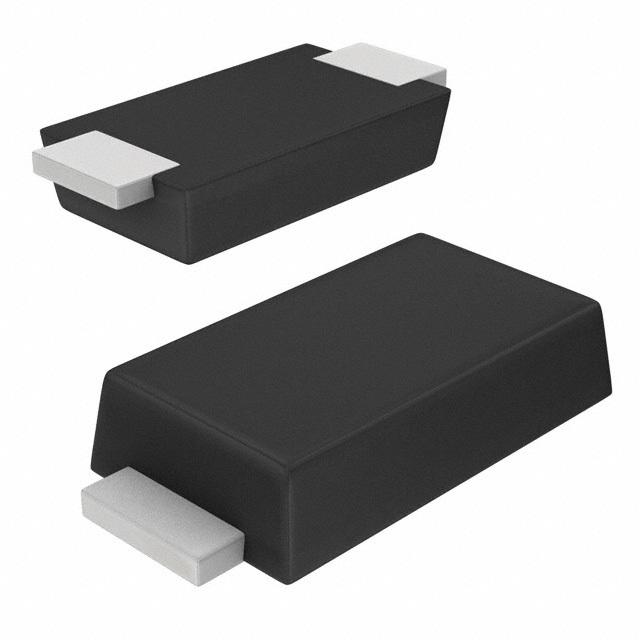

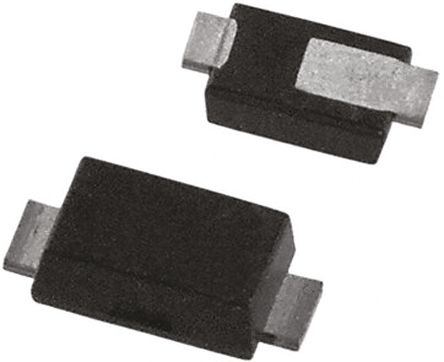

TRANSZORB® 瞬态电压抑制器表面安装单向 600W,SMA6F 系列,Vishay Semiconductor### 瞬态电压抑制器,Vishay Semiconductor
The TRANSZORB SMA6F series surface-mount Transient Voltage Suppressor Diode ideal for automated placement. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
工作电压 18 V
击穿电压 22.1 V
针脚数 2
耗散功率 1 W
钳位电压 33.2 V
测试电流 1 mA
最大反向击穿电压 22.1 V
脉冲峰值功率 600 W
最小反向击穿电压 20 V
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-221AC
长度 4.35 mm
宽度 2.7 mm
高度 1 mm
封装 DO-221AC
工作温度 -55℃ ~ 175℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
制造应用 Industrial, Automotive, 通用, Lighting, Consumer Electronics, Sensing & Instrumentation, Computers & Computer Peripherals, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMA6F18A-M3/6A Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SMA6F18A-M3/6B 威世 | 类似代替 | SMA6F18A-M3/6A和SMA6F18A-M3/6B的区别 |
