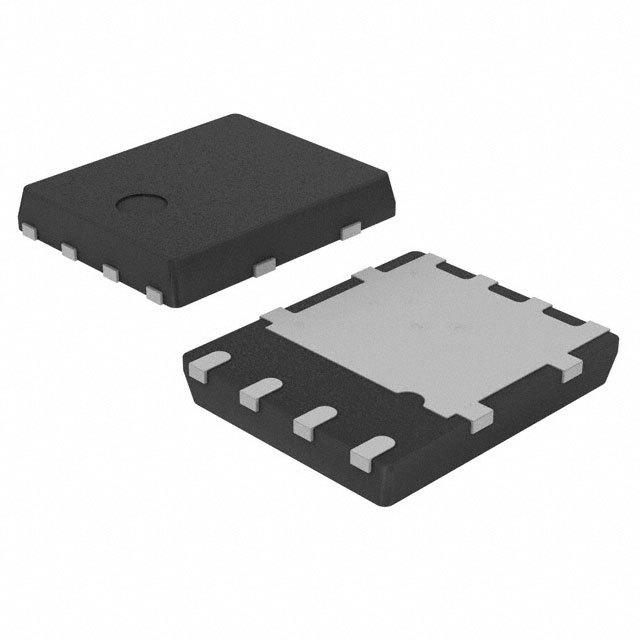

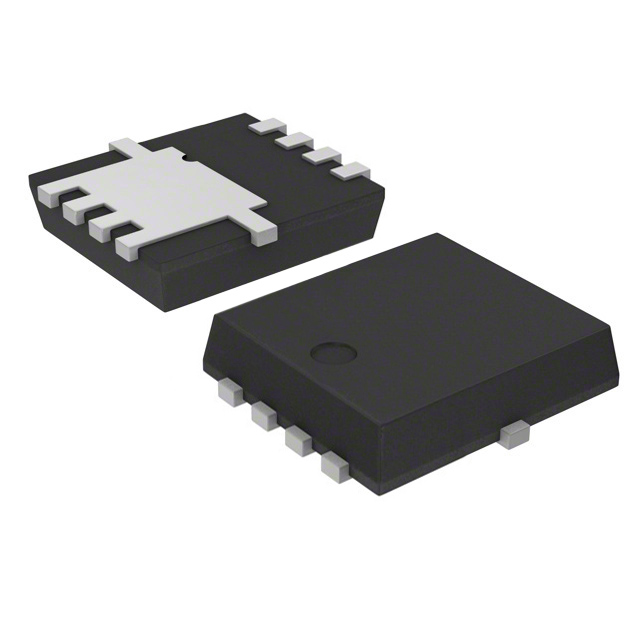

STMICROELECTRONICS STTH5R06DJF-TR 标准恢复二极管, 单, 600 V, 5 A, 2 V, 55 ns, 190 A
整流器,4A 至 9A,STMicroelectronics
### 二极管和整流器,STMicroelectronics
得捷:
DIODE GEN PURP 600V 5A POWERFLAT
欧时:
STMicroelectronics STTH5R06DJF-TR 开关二极管, Iout=5A, Vrev=600V, HF频率范围, 8引脚 PowerFLAT封装
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a switching diode STTH5R06DJF-TR rectifier from STMicroelectronics. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its peak non-repetitive surge current is 190 A, while its maximum continuous forward current is 5 A. This rectifier has a minimum operating temperature of -65 °C and a maximum of 175 °C. It is made in a single dual anode configuration.
安富利:
Diode Switching 600V 5A 8-Pin Power FLAT T/R
Chip1Stop:
Diode Switching 600V 5A 8-Pin Power Flat T/R
Win Source:
DIODE GEN PURP 600V 5A POWERFLAT
针脚数 8
正向电压 2V @5A
热阻 2℃/W RθJC
反向恢复时间 55 ns
正向电流 5 A
最大正向浪涌电流(Ifsm) 190 A
正向电压Max 2 V
正向电流Max 5 A
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 175℃ Max
安装方式 Surface Mount
引脚数 8
封装 SMD-8
长度 5.2 mm
宽度 6.15 mm
高度 0.05 mm
封装 SMD-8
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 电源管理, 工业, Industrial, Power Management, Industrial, Power Management
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
