Sensors, Infrared Sensors, Detector

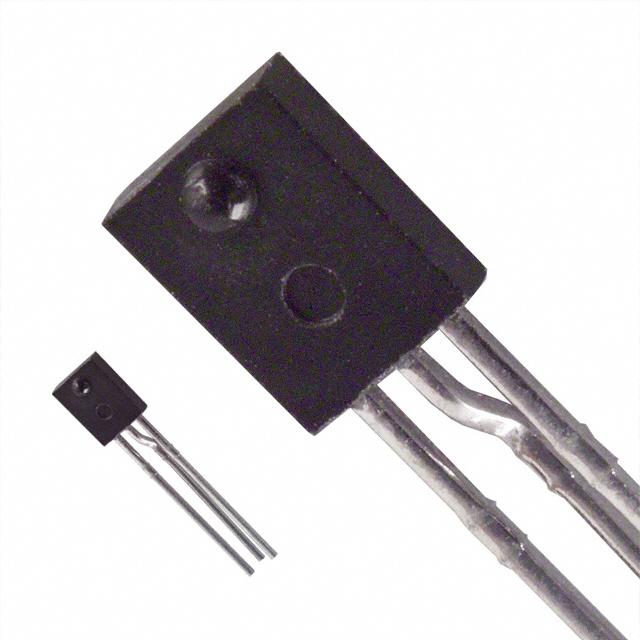

光学传感器 935nm 光电探测器 - 逻辑输出 开路集电极 径向,3 引线,侧视图
得捷:
PHOTODETECTOR SCHMITT SIDE LOOK
贸泽:
Photo IC Sensors 50 deg, Side-Looking 10 kOhm Pull-up
艾睿:
Photodetector 0.1MHz Optoschmitt 3-Pin Side Looker
Powell:
Sensors, Infrared Sensors, Detector
Electro Sonic:
NoPhotodetector 0.1MHz Optoschmitt 3-Pin Side Looker
供电电流 15 mA
通道数 1
波长 935 nm
时钟频率 100 kHz
耗散功率 100 mW
上升时间 60 ns
下降时间 15 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 12.0 VDC
安装方式 Through Hole
引脚数 3
封装 Radial, 3 Lead, Side View
长度 4.45 mm
宽度 2.28 mm
高度 5.72 mm
封装 Radial, 3 Lead, Side View
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
