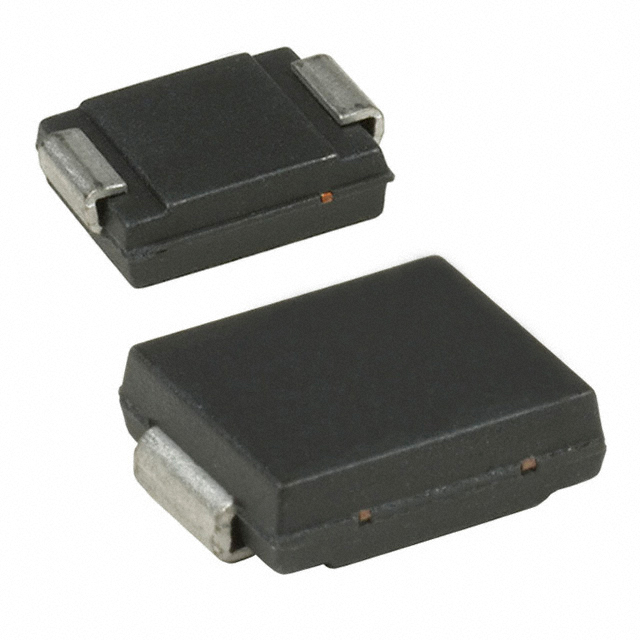

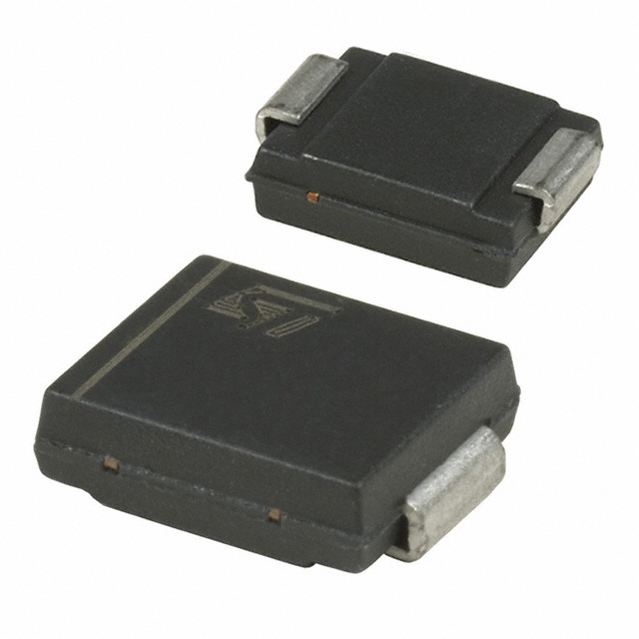

SM15T12CA

ESD 抑制器/TVS 二极管 1500W 12V Bidirect

Description

Transil diodes provide high overvoltage protection by clamping action. Their instantaneous response to transient overvoltages makes them particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC’s.

Features

■ Peak pulse power: 1500 W 10/1000 µs

■ Breakdown voltage range: from 6.8 V to 220 V

■ Uni and bidirectional types

■ Low clamping factor

■ Fast response time

■ UL recognized

得捷:
TVS DIODE 10.2VWM 21.7VC SMC

欧时:
STMicroelectronics, SM15T12CA

立创商城:
双向 Vrwm:10.2V 1.5kW

贸泽:
ESD 抑制器/TVS 二极管 1500W 12V Bidirect

艾睿:
Surges can be a costly problem, avoid the pain and suffering by implementing this SM15T12CA TVS diode from STMicroelectronics. Its maximum leakage current is 0.2 μA. Its test current is 1 mA. Its peak pulse power dissipation is 1500 W. This device&s;s maximum clamping voltage is 21.7 V and minimum breakdown voltage is 11.4 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.

安富利:
Diode TVS Single Bi-Dir 10.2V 1.5KW 2-Pin SMC T/R

Chip1Stop:
Diode TVS Single Bi-Dir 10.2V 1.5KW 2-Pin SMC T/R

Verical:
Diode TVS Single Bi-Dir 10.2V 1.5KW 2-Pin SMC T/R

Win Source:
TVS DIODE 10.2VWM 21.7VC SMC
