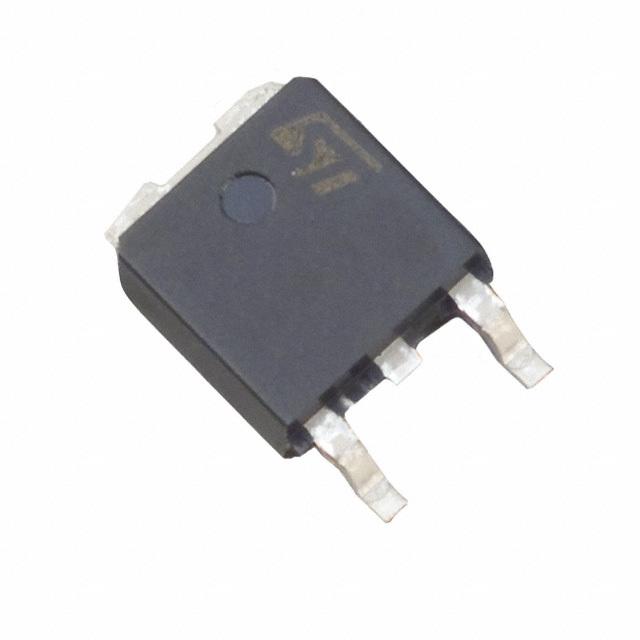

STPSC6H065B-TR

STMICROELECTRONICS  STPSC6H065B-TR  二极管, 碳化硅肖特基, SIC, 650V系列, 单, 650 V, 6 A, 18 nC, TO-252

The SiC diode is an ultrahigh performance power Schottky diode. It is manufactured using a silicon carbide substrate. The wide band gap material allows the design of a Schottky diode structure with a 650 V rating. Due to the Schottky construction, no recovery is shown at turn-off and ringing patterns are negligible. The minimal capacitive turn-off behavior is independent of temperature.

Especially suited for use in PFC applications, this ST SiC diode will boost the performance in hard switching conditions. Its high forward surge capability ensures a good robustness during transient phases.

**Key Features**

.

No reverse recovery charge in application current range

.

Switching behavior independent of temperature

.

Dedicated to PFC applications

.

High forward surge capability

.

Insulated package TO-220AC Ins:

.

Insulated voltage: 2500 V rms

.

Typical package capacitance: 7 pF
