肖特基势垒二极管,40A 至 240A,STMicroelectronics### 二极管和整流器,STMicroelectronics
肖特基势垒,40A 至 240A,STMicroelectronics
### 二极管和整流器,STMicroelectronics
得捷:
DIODE ARRAY SCHOTTKY 15V TO220AB
欧时:

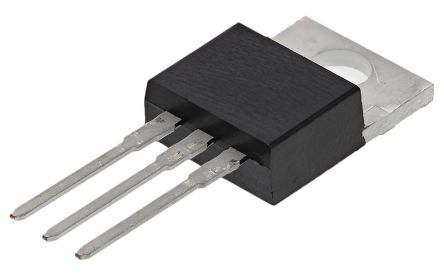

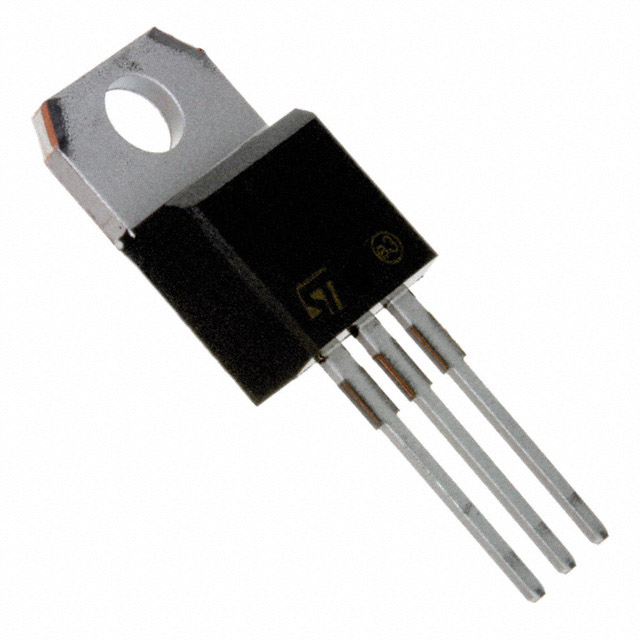

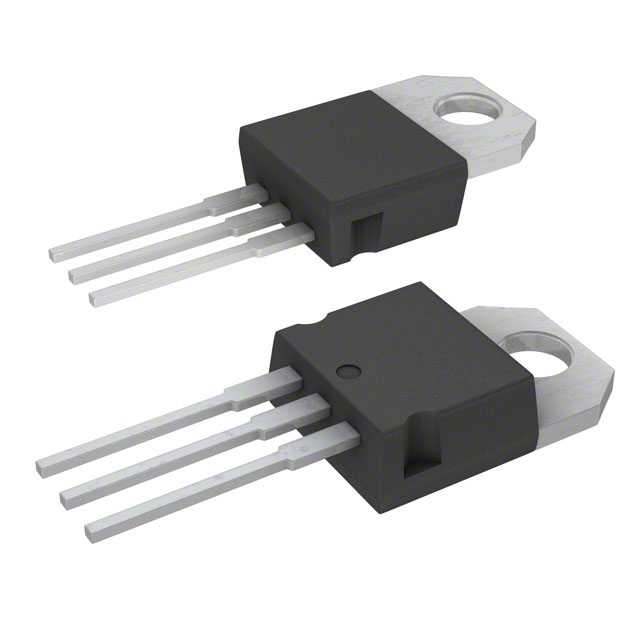

STMicroelectronics 二极管 STPS40L15CT 肖特基, Io=40A, Vrev=15V, 3引脚 TO-220AB封装
贸泽:
肖特基二极管与整流器 2X20 Amp 15 Volt
e络盟:
肖特基整流器, 15 V, 40 A, 双共阴极, TO-220AB, 3 引脚, 520 mV
艾睿:
Switch from an AC voltage to a DC voltage using a Schottky diode STPS40L15CT rectifier from STMicroelectronics. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its peak non-repetitive surge current is 310 A, while its maximum continuous forward current is 40 A. This rectifier has an operating temperature range of -65 °C to 125 °C. It is made in a dual common cathode configuration.
安富利:
Diode Schottky 15V 40A 3-Pin3+Tab TO-220AB Tube
富昌:
STPS40 系列 双通道 中心抽头 20 A 0.33 V 肖特基二极管 - TO-220AB
Chip1Stop:
Diode Schottky 15V 40A 3-Pin3+Tab TO-220AB Tube
Verical:
Diode Schottky 15V 40A 3-Pin3+Tab TO-220AB Tube
Win Source:
DIODE ARRAY SCHOTTKY 15V TO220AB
额定电压DC 15.0 V
额定电流 40.0 A
针脚数 3
正向电压 410mV @19A
正向电流 40 A
最大正向浪涌电流(Ifsm) 310 A
正向电压Max 520 mV
正向电流Max 40 A
工作温度Max 125 ℃
工作温度Min -65 ℃
工作结温 125℃ Max
安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10.4 mm
宽度 4.6 mm
高度 9.15 mm
封装 TO-220-3
工作温度 -65℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STPS40L15CT ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
40L15CTPBF 威世 | 功能相似 | STPS40L15CT和40L15CTPBF的区别 |
40L15CT 威世 | 功能相似 | STPS40L15CT和40L15CT的区别 |
FST4515 美高森美 | 功能相似 | STPS40L15CT和FST4515的区别 |
