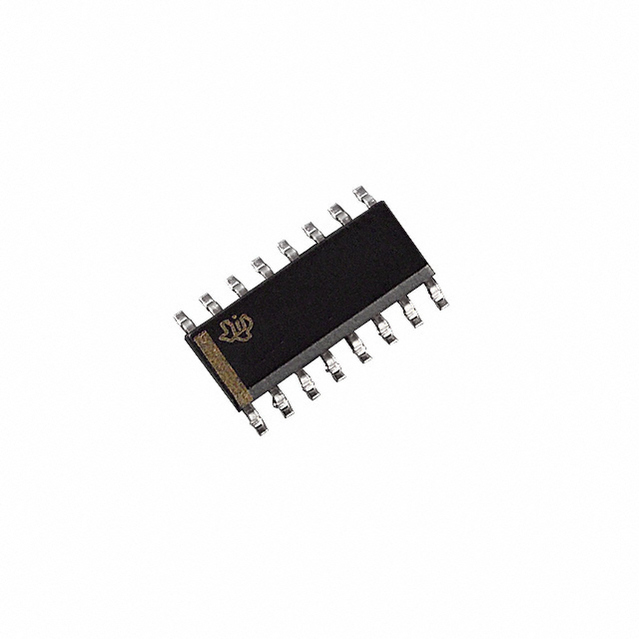

SN65LVDT348DR

Quad LVDS Receiver with -4 to 5V Common-mode Range 16-SOIC -40℃ to 85℃

DESCRIPON

The SN65LVDS348, SN65LVDT348, SN65LVDS352, and SN65LVDT352 are high-speed, quadruple differential receivers with a wide common-mode input voltage range. This allows receipt of TIA/EIA-644 signals with up to 3-V of ground noise or a variety of differential and single-ended logic levels. The "348 is in a 16-pin package to match the industry-standard footprint of the DS90LV048. The "352 adds two additional VCC and GND pins in a 24-pin package to provide higher data transfer rates with multiple receivers in operation. All offer a flow-through architecture with all inputs on one side and outputs on the other to ease board layout and reduce crosstalk between receivers. LVDT versions of both integrate a 110-Ω line termination resistor.

FEATURES

• Meets or Exceeds the Requirements of ANSI TIA/EIA-644A Standard

• Single-Channel Signaling Rates up to 560 Mbps

• -4 V to 5 V Common-Mode Input Voltage Range

• Flow-Through Architecture

• Active Failsafe Assures a High-level Output When an Input Signal Is not Present

• SN65LVDS348 Provides a Wide Common Mode Range Replacement for the SN65LVDS048A or the DS90LV048A

APPLICATIONS

• Logic Level Translator

• Point-to-Point Baseband Data Transmission Over 100-Ω Media

• ECL/PECL-to-LVTTL Conversion

• Wireless Base Stations

• Central Office or PABX Switches
