STM6823 系列 4.63 V 140 ms 监控器 带看门狗定时器和按键复位功能
Control the core processor in case of failure with the microprocessor supervisory circuit, developed by STMicroelectronics. This device has a maximum power dissipation of 320 mW. Its maximum power dissipation is 320 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a typical reset threshold voltage of 4.63 V, with a minimum of 4.561 V and a maximum of 4.699 V. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 5.50V max
供电电流 0.017 mA
耗散功率 0.32 W
阈值电压 4.63 V
复位电压Min 4.561 V
复位电压Max 4.699 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 320 mW
电源电压 5.5 V
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 5

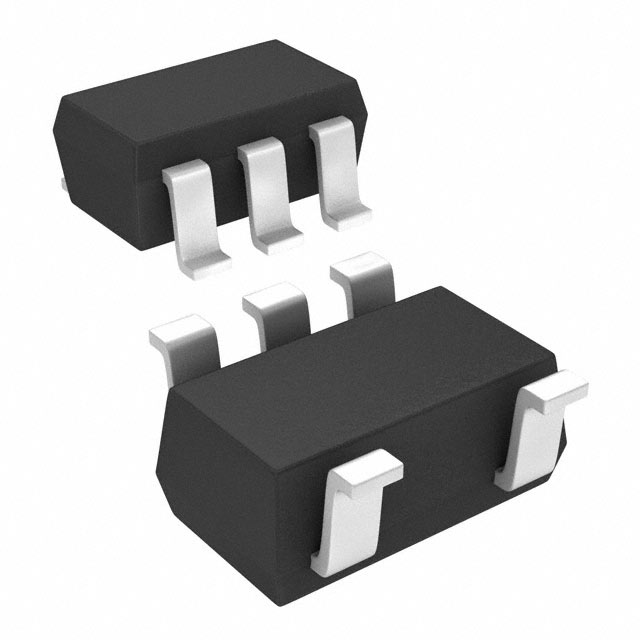

封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
STM6823LWY6F ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
TPS3823-50DBVR 德州仪器 | 功能相似 | STM6823LWY6F和TPS3823-50DBVR的区别 |
