SMDJ14A

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

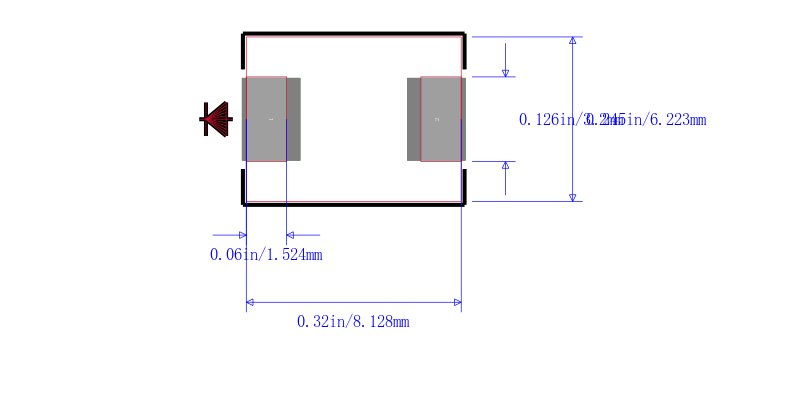

23.2V 夹子 129.3A Ipp TVS - 表面贴装型 DO-214AB（SMCJ）

得捷:
TVS DIODE 14VWM 23.2VC DO214AB

立创商城:
Vrwm:14V 3kW

贸泽:
ESD 抑制器/TVS 二极管 3kW 14V 5% Uni-Directional

艾睿:
This SMDJ14A TVS diode from Littelfuse is a must-have if your electronic equipment may be exposed to overvoltage conditions. Its test current is 1 mA. This device&s;s maximum clamping voltage is 23.2 V and minimum breakdown voltage is 15.6 V. Its maximum leakage current is 2 μA. Its peak pulse power dissipation is 3000 W. This TVS diode has an operating temperature range of -65 °C to 150 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery.

Chip1Stop:
Diode TVS Single Uni-Dir 14V 3KW 2-Pin DO-214AB T/R

TME:
Diode: transil; 3kW; 16.4V; 129.3A; unidirectional; ±5%; DO214AB
