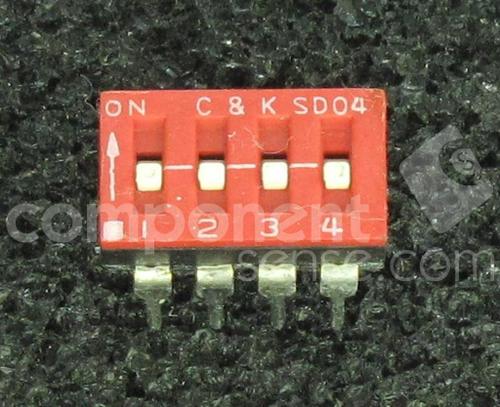

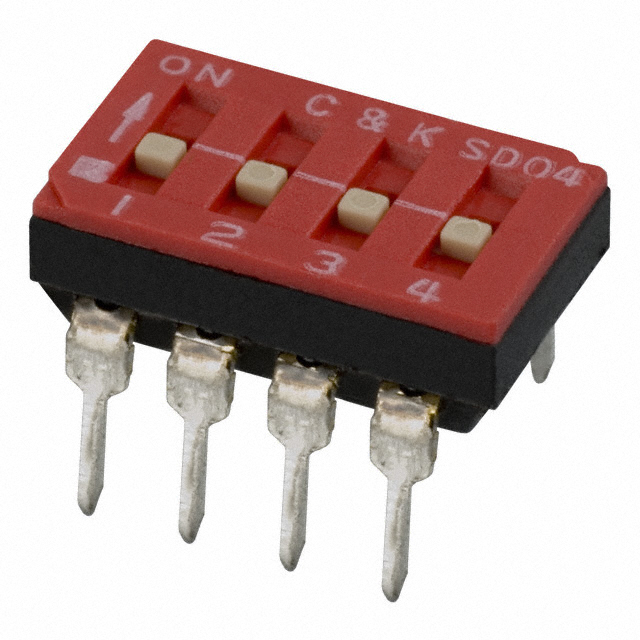

DIP 开关/ SIP 开关 4P LOW PROFILE DIP
Switch DIP OFF ON SPST 4 Flush Slide 0.1A 25VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
得捷:
SWITCH SLIDE DIP SPST 100MA 25V
贸泽:
DIP 开关/ SIP 开关 4P LOW PROFILE DIP
艾睿:
Switch DIP OFF ON SPST 4 Flush Slide 0.1A 25VDC PC Pins 2000Cycles/Switch 2.54mm Thru-Hole Tube
Chip1Stop:
Switch DIP OFF ON SPST 4 Flush Slide 0.1A 25VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
Verical:
Switch DIP OFF ON SPST 4 Flush Slide 0.1A 25VDC PC Pins 2000Cycles/Switch 2.54mm Thru-Hole Tube
MASTER:
Switch DIP OFF ON SPST 4 Flush Slide 0.1A 25VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
Online Components:
Switch DIP OFF ON SPST 4 Flush Slide 0.1A 25VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
Electro Sonic:
Switch DIP OFF ON SPST 4 Flush Slide 0.1A 25VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
额定电压DC 25 V
触点类型 SPST
针脚数 4
额定电流Max 0.1A @25VDC
工作温度Max 85 ℃
工作温度Min -20 ℃
额定电压 25 VDC
额定电压DC Max 25 V
接触电阻Max <50 mΩ
安装方式 Through Hole
封装 DIP
引脚间距 2.54 mm
长度 11.63 mm
高度 4.52 mm
封装 DIP
引脚间距 2.54 mm
触点材质 Copper Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 2000 Cycles
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
HTS代码 8536509065
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SD04H0K C&K Components | 当前型号 | 当前型号 |
SD04H0B C&K Components | 类似代替 | SD04H0K和SD04H0B的区别 |
