20位FET总线开关 20-BIT FET BUS SWITCH
The SN74CBTR16861 provides 20 bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.
The device is organized as one dual 10-bit switch with separate output-enable OE\\\\ inputs. When OE\ is low, the switch is on, and port A is connected to port B. When OE\ is high, the switch is open, and the high-impedance state exists between the two ports.
The device has equivalent 25- series resistors to reduce signal-reflection noise. This eliminates the need for external terminating resistors.
电源电压DC 4.00V ~ 5.50V
输出电流 64.0 mA
触点类型 SPST
供电电流 250 mA
位数 20
传送延迟时间 1.25 ns
极性 Non-Inverting
电压波节 5.00 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
安装方式 Surface Mount

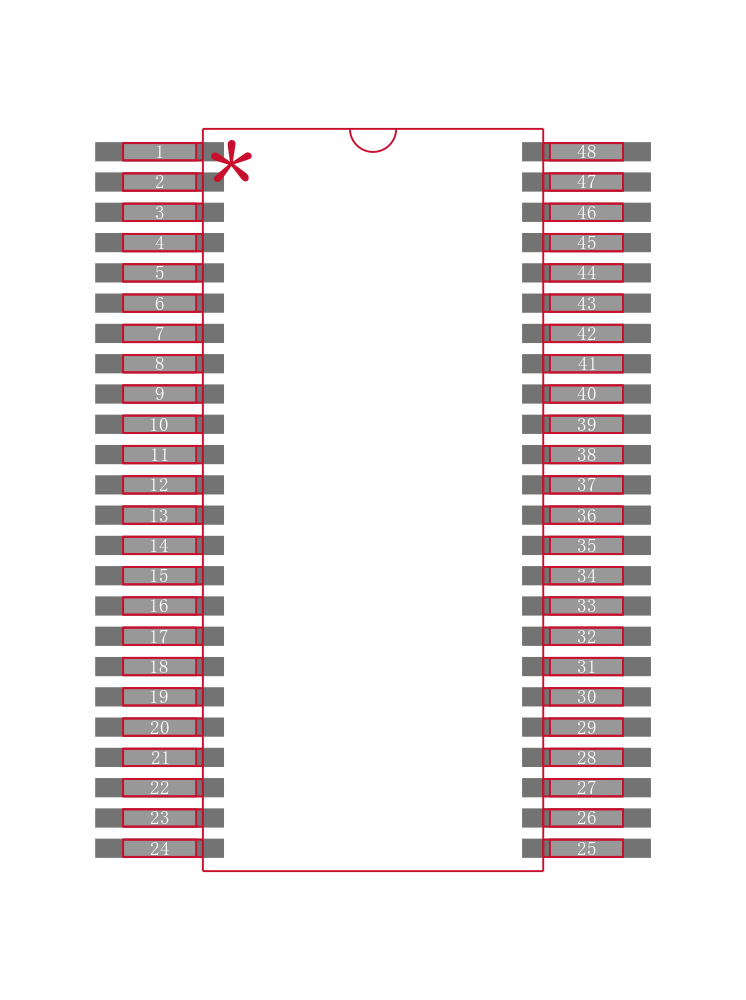

引脚数 48

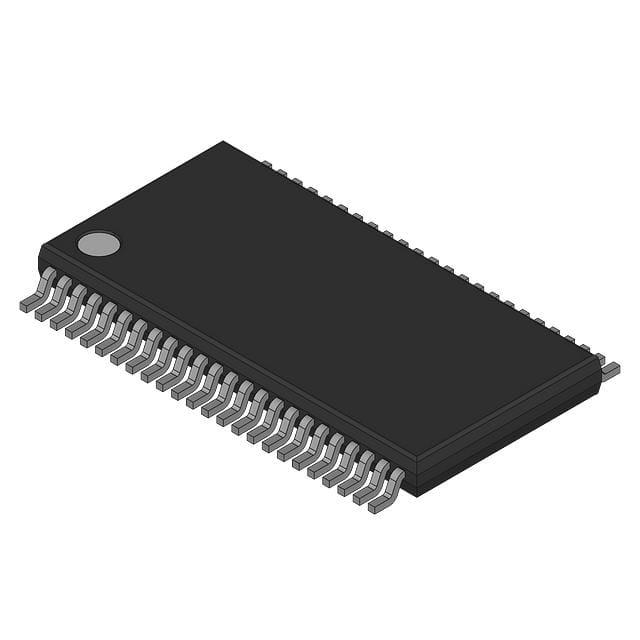

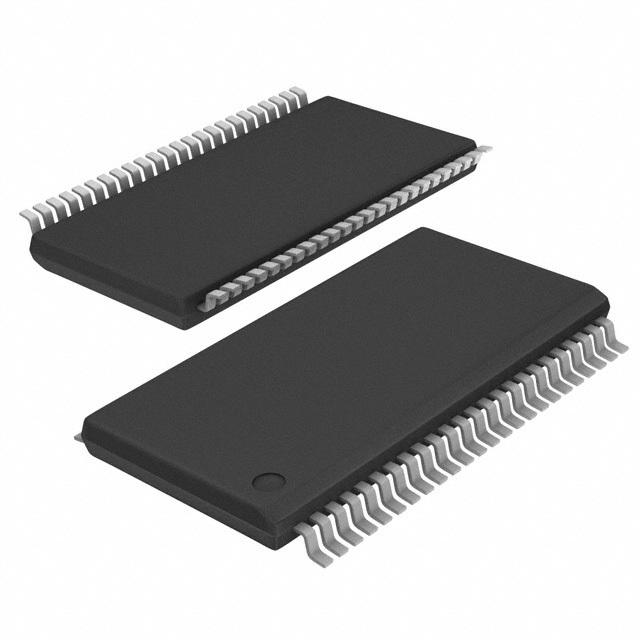

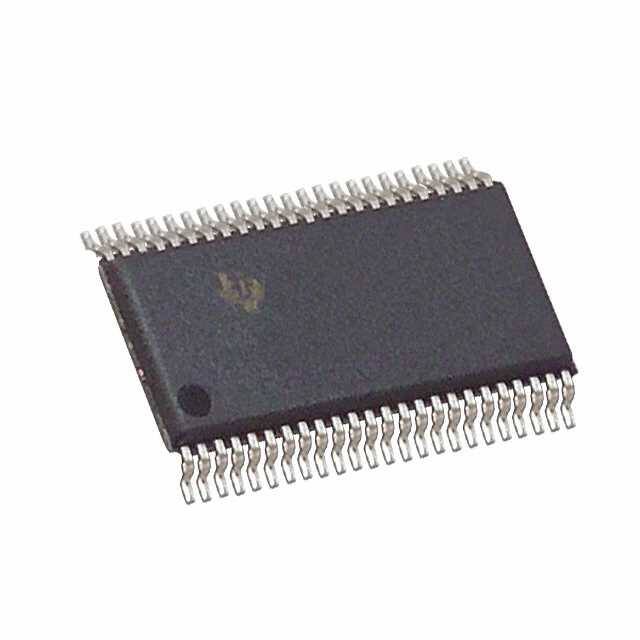

封装 TVSOP-48
封装 TVSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74CBTR16861DGVR TI 德州仪器 | 当前型号 | 当前型号 |
74CBTR16861DGVRG4 德州仪器 | 完全替代 | SN74CBTR16861DGVR和74CBTR16861DGVRG4的区别 |
74CBTR16861DGVRE4 德州仪器 | 完全替代 | SN74CBTR16861DGVR和74CBTR16861DGVRE4的区别 |
