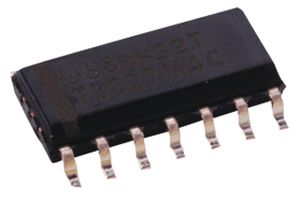

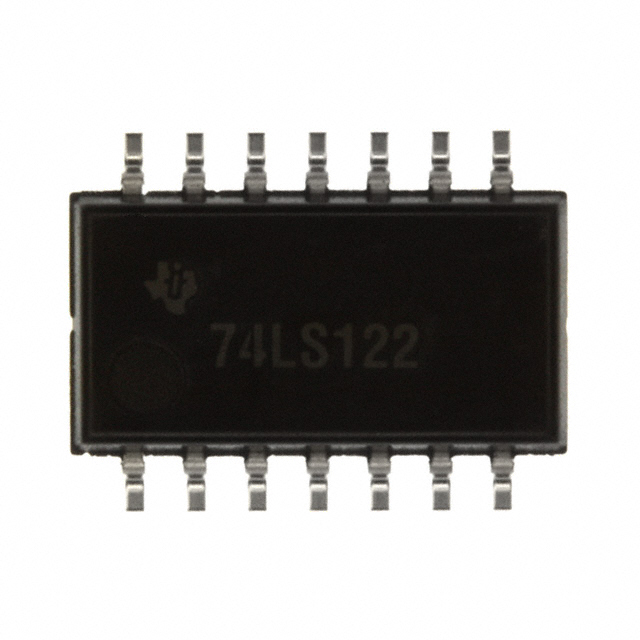

可重触发单稳态触发器 RETRIGGERABLE MONOSTABLE MULTIVIBRATORS
Texas Instruments" monostable multivibrator allows you to relax - a short pulse will notify you when a chosen condition within your circuit is met. This monostable multivibrator has a minimum operating temperature of 0 °C and a maximum of 70 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V.
数字逻辑电平 TTL
电源电压DC 4.75V ~ 5.25V
输出电流 8 mA
电路数 1
位数 2
电压波节 5.00 V
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 14
封装 SOP-14
长度 10.3 mm
宽度 5.3 mm
高度 1.95 mm
封装 SOP-14
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LS122NSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LS122NSRG4 德州仪器 | 类似代替 | SN74LS122NSR和SN74LS122NSRG4的区别 |
SN74LS122NSRE4 德州仪器 | 类似代替 | SN74LS122NSR和SN74LS122NSRE4的区别 |
