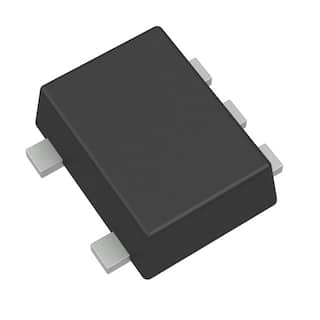

SN74LVC1G14DRLR图片1

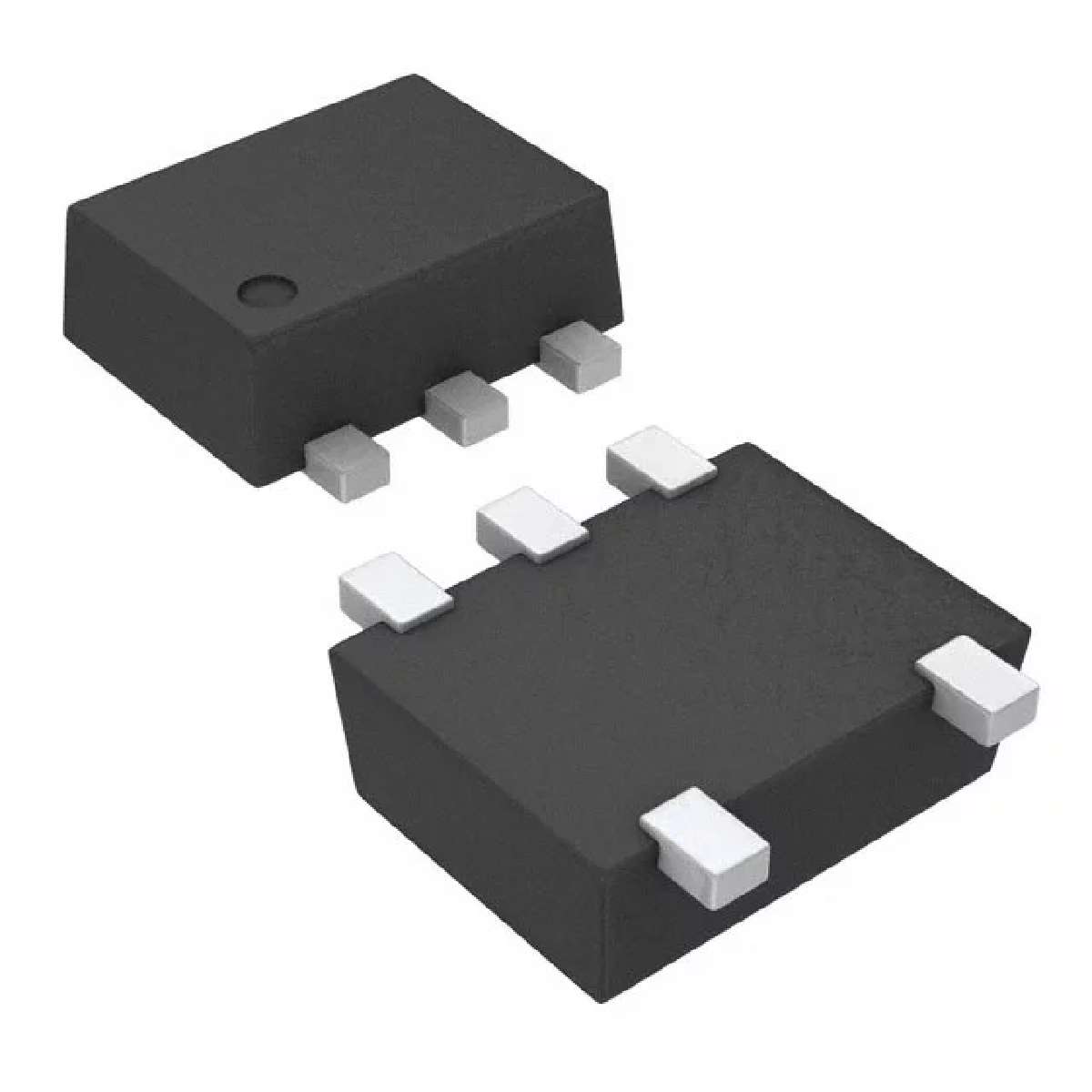

SN74LVC1G14DRLR图片2
SN74LVC1G14DRLR图片3
SN74LVC1G14DRLR图片4
SN74LVC1G14DRLR图片5
SN74LVC1G14DRLR图片6
SN74LVC1G14DRLR图片7
SN74LVC1G14DRLR图片8
SN74LVC1G14DRLR图片9
SN74LVC1G14DRLR图片10
SN74LVC1G14DRLR图片11
SN74LVC1G14DRLR概述

TEXAS INSTRUMENTS  SN74LVC1G14DRLR  非门, LVC系列, 施密特触发, 1输入, 5 ns, 1.65V至5.5V, SOT-553-5

The is a single Schmitt-trigger Inverter. The device performs the Boolean function Y = A\\. The device functions as an independent inverter, but because of Schmitt action, it may have different input threshold levels for positive-going VT+ and negative-going VT- signals. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

.
±24mA Output drive at 3.3V
.
10µA Maximum ICC low power consumption
.
Inputs accept voltages to 5.5V
.
Maximum tpd of 4.6ns at 3.3V
.
Ioff supports partial-power-down mode operation
.
ESD protection exceeds JESD 22
.
Latch-up performance exceeds 100mA per JESD 78, Class II
SN74LVC1G14DRLR中文资料参数规格
技术参数

电源电压DC 5.00 V

输出电流 32 A

电路数 1

针脚数 5

位数 1

传送延迟时间 5.00 ns

逻辑门个数 1

输出电流驱动 -1.00 mA

输入数 1

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 1.65V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 1.65 V

封装参数

安装方式 Surface Mount

引脚数 5

封装 SOT-553

外形尺寸

封装 SOT-553

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

制造应用 工业

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

数据手册

SN74LVC1G14DRLR引脚图与封装图
SN74LVC1G14DRLR引脚图
SN74LVC1G14DRLR封装图
SN74LVC1G14DRLR封装焊盘图
在线购买SN74LVC1G14DRLR
型号: SN74LVC1G14DRLR
制造商: TI 德州仪器
描述:TEXAS INSTRUMENTS  SN74LVC1G14DRLR  非门, LVC系列, 施密特触发, 1输入, 5 ns, 1.65V至5.5V, SOT-553-5
