SML-LX2723SYC-TR

SML-LX2723SYC-TR图片1
SML-LX2723SYC-TR图片2

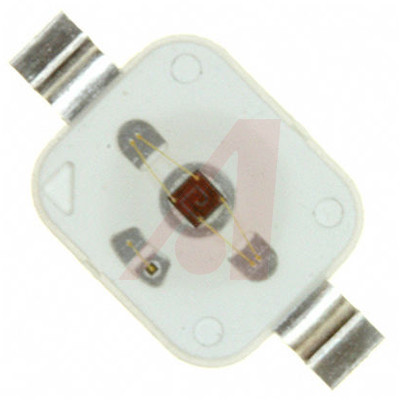

SML-LX2723SYC-TR图片3
SML-LX2723SYC-TR图片4

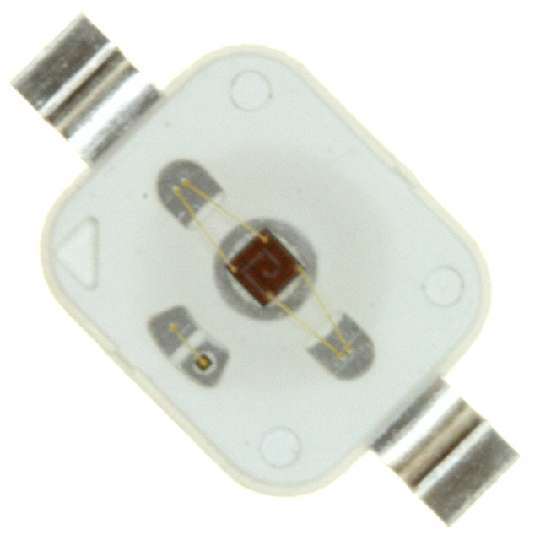

SML-LX2723SYC-TR图片5
SML-LX2723SYC-TR概述

SML-LX2723SYC-TR, TitanBrite Series Yellow LED, 590nm SMD package

The range of high power s have been professionally designed to combine SMT convenience with through-hole T-5 mm LED size features. The economical and highly reliable series of LEDs and accessories features High Brightness Chip Technology and is available in a wide range of colours and lens finishes.

**Features:**

* High Brightness Chip Technology

* Wide range of colours and lens finishes

* Easy installation

SML-LX2723SYC-TR中文资料参数规格
技术参数

正向电压 2 V

波长 590 nm

发光强度 23 mcd

视角 120°

测试电流 350 mA

正向电流 350 mA

封装参数

安装方式 Surface Mount

引脚数 2

封装 SMD-2

外形尺寸

宽度 6 mm

封装 SMD-2

物理参数

颜色 Yellow

外观颜色 Transparent

其他

产品生命周期 Obsolete

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买SML-LX2723SYC-TR
型号: SML-LX2723SYC-TR
制造商: Lumex 鲁美科思
描述:SML-LX2723SYC-TR, TitanBrite Series Yellow LED, 590nm SMD package
