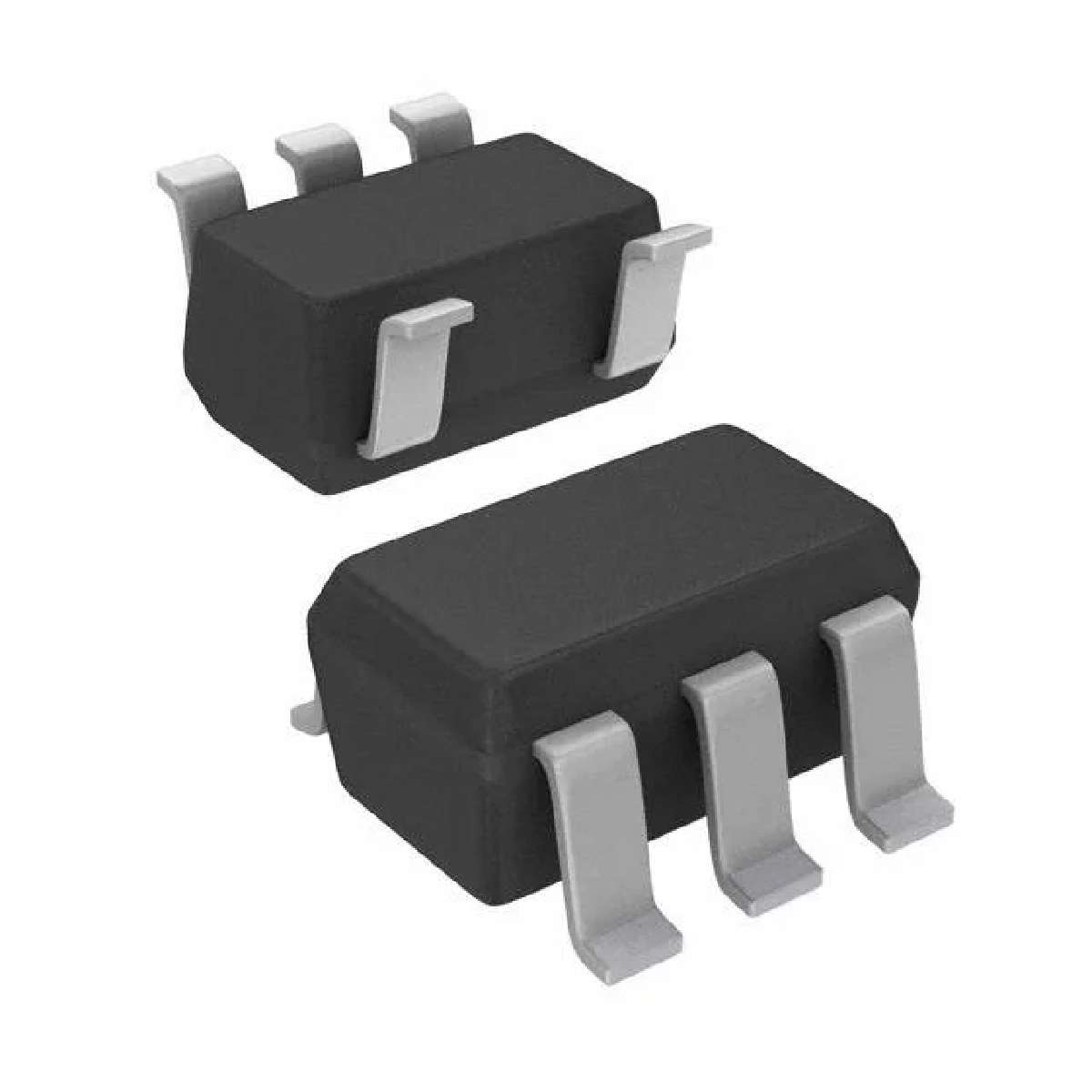

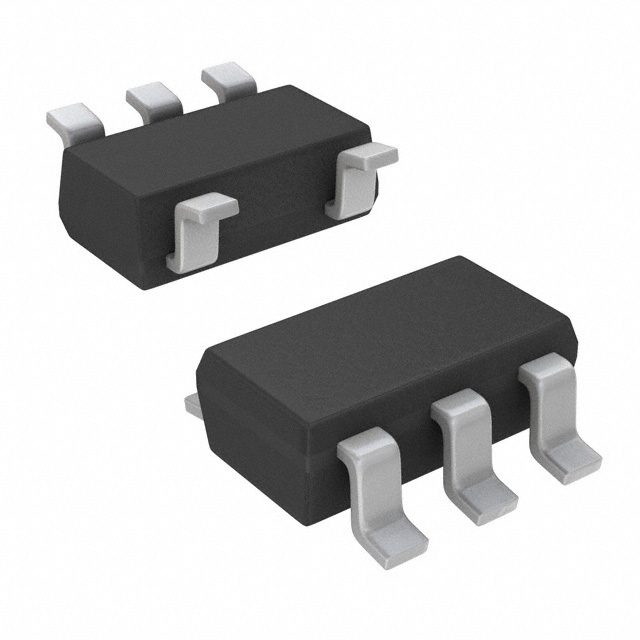

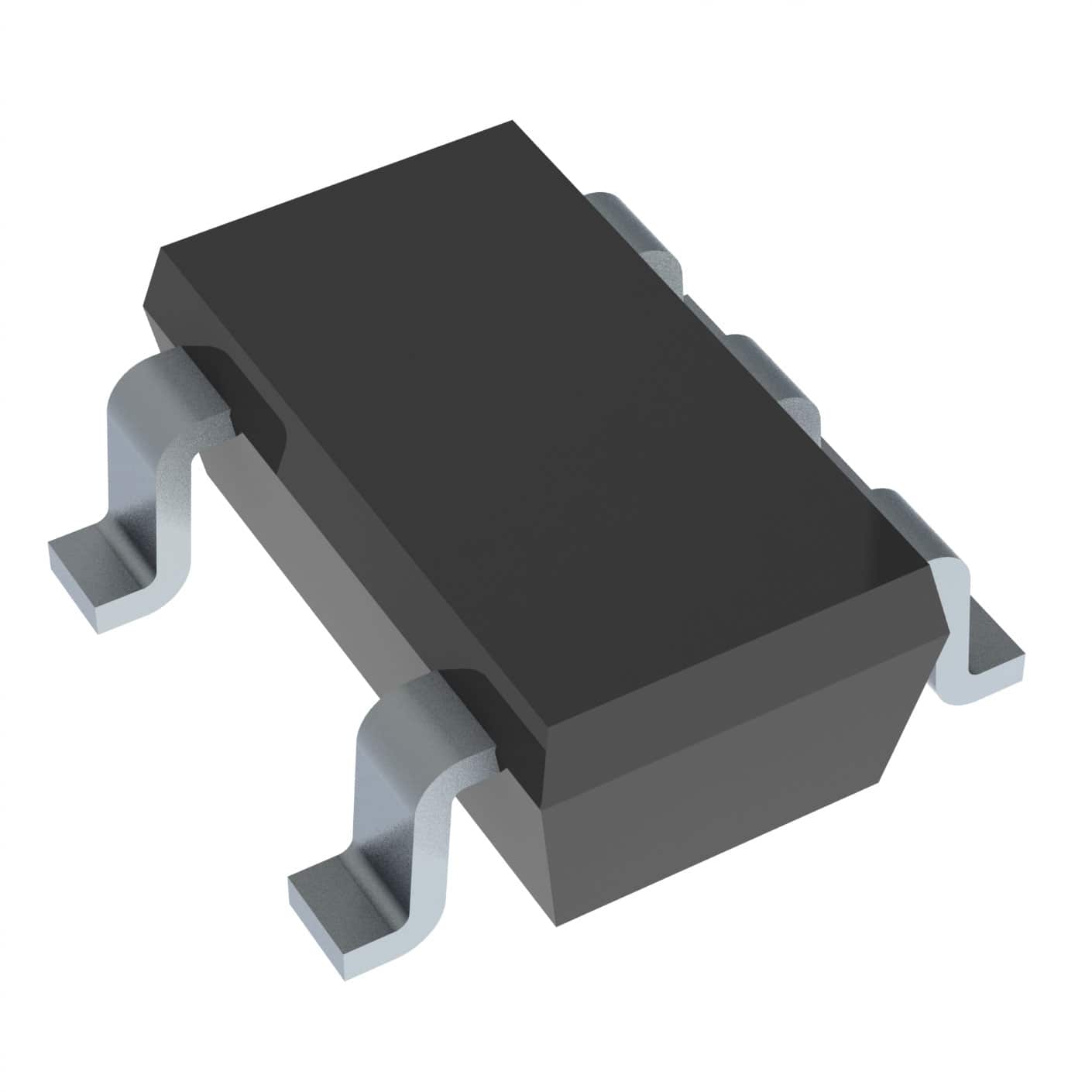

SN74AHCT1G126DBVR

单总线缓冲,三态输出

The is a single Bus Buffer Gate/Line Driver with 3-state output. The output is disabled when the output-enable OE input is low. When OE is high, true data is passed from the A input to the Y output. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pull-down resistor and the minimum value of the resistor is determined by the current-sourcing capability of the driver.

.

Inputs are TTL-voltage compatible

.

Slow edges reduce output ringing

.

TTL inputs - Lowered switching threshold allows up translation 3.3 to 5V

.

10µA maximum ICC low power consumption

.

6ns at 5V Propagation delay tpd

.

±8mA Output drive at 5V

.

Latch-up performance exceeds 250mA per JESD 17

.

Green product and no Sb/Br
