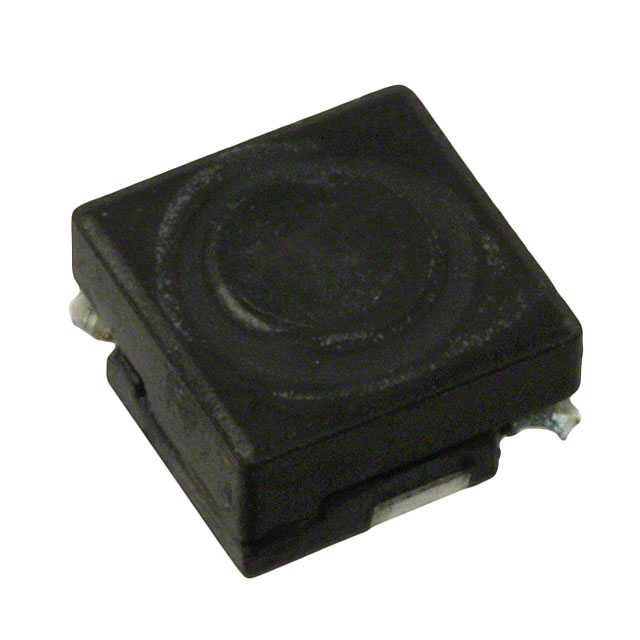

SRR0603-151KL

BOURNS  SRR0603-151KL  表面贴装功率电感器, SRR0603系列, 150 µH, ± 10%, 屏蔽, 1.9 ohm, 250 mA

Shielded Power Inductors

Features

■Available in E6 series

■Low unit height of 3.3 mm

■High current

.

Applications

■Input/output of DC/DC converters

■Power supplies for:

   • Portable communication equipment

   • Camcorders

   • LCD TVs

   • Car radios

得捷:
FIXED IND 150UH 250MA 1.9OHM SMD

立创商城:
150uH ±10% 250mA 1.9Ω

e络盟:
功率电感SMD, 150 µH, 250 mA, 屏蔽, 390 mA, SRR0603系列, 6.5mm x 6.5mm x 3.3mm

艾睿:
Save valuable space on a PCB with this power SRR0603-151KL surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 250m A with a maximum resistance of 1.9 Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 8M Hz. It has an inductance of 150u H. It has a tolerance of 10%. This product is 6.7 mm long, 3.3 mm tall and 6.7 mm deep.

安富利:
Ind Power Shielded Wirewound 150uH 10% 1KHz 22Q-Factor Ferrite 250mA T/R

Verical:
Inductor Power Shielded Wirewound 150uH 10% 1KHz 22Q-Factor Ferrite 0.25A 1.9Ohm DCR T/R

Newark:
# BOURNS  SRR0603-151KL  Surface Mount Power Inductor, SRR0603 Series, 150 H, 10%, Shielded, 1.9 ohm, 250 mA

Online Components:
Inductor Power Shielded Wirewound 150uH 10% 1KHz 22Q-Factor Ferrite 250mA 1.9Ohm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 150uH 10% 1KHz 22Q-Factor Ferrite 250mA 1.9Ohm DCR T/R
