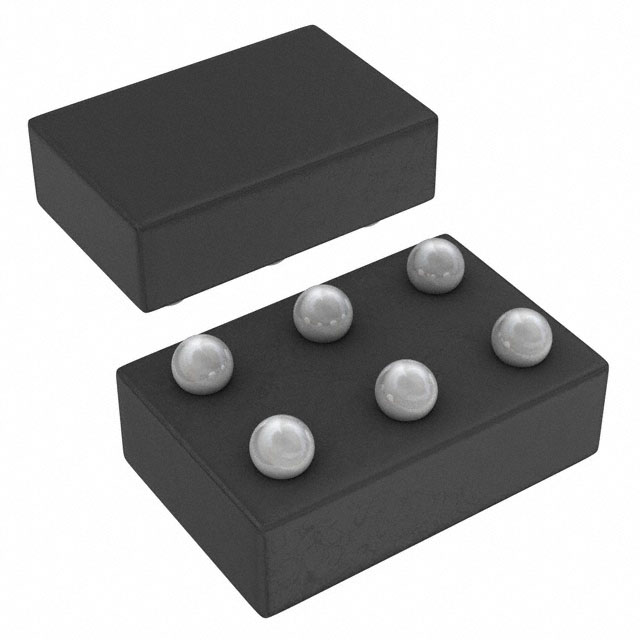

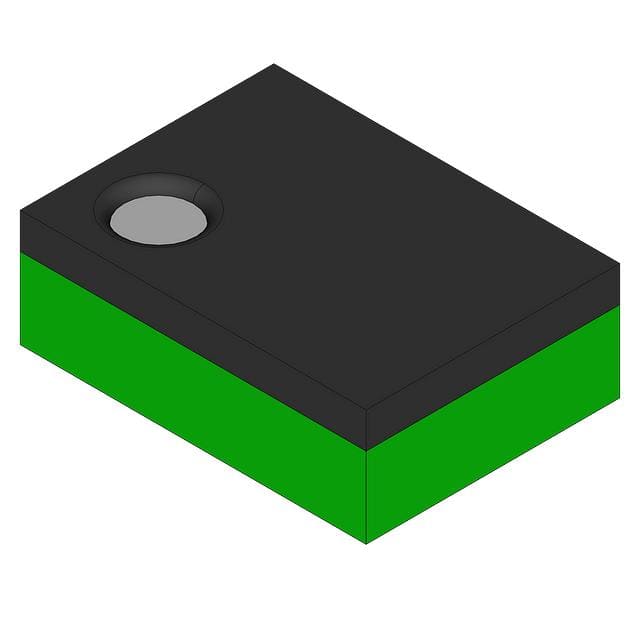

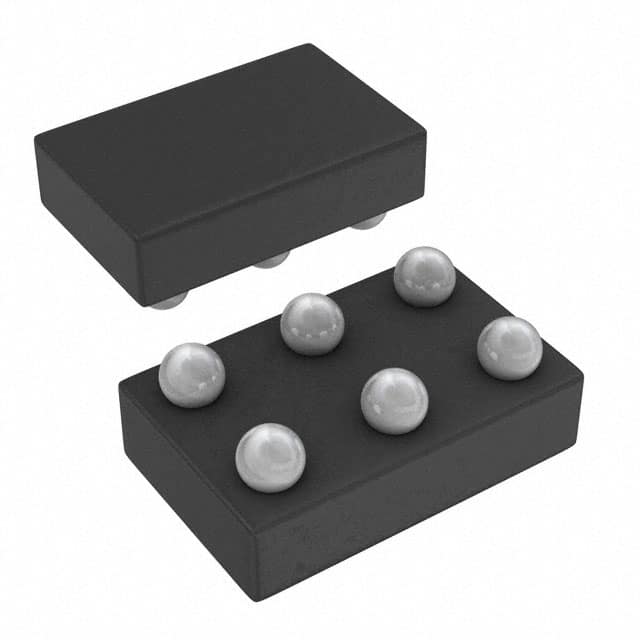

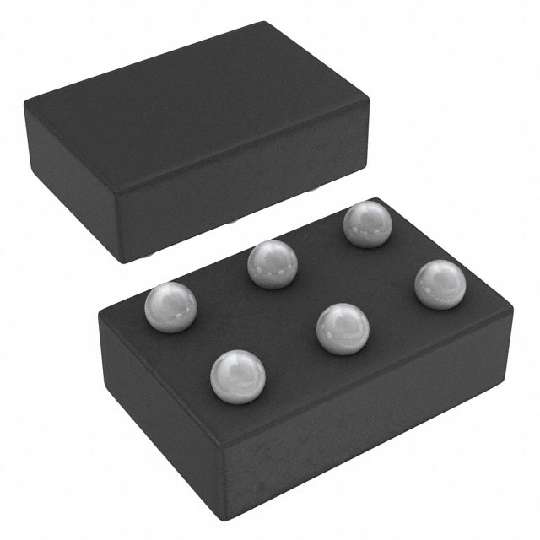

低功耗双缓冲/驱动器,具有漏极开路输出 LOW-POWER DUAL BUFFER/DRIVER WITH OPEN-DRAIN OUTPUTS
* Low Static-Power Consumption ICC = 0.9 µA Maximum * Low Dynamic-Power Consumption Cpd = 1 pF Typical at 3.3 V * Low Input Capacitance Ci = 1.5 pF Typical * Low Noise – Overshoot and Undershoot CC * Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection * Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at the Input Vhys = 250 mV Typ at 3.3 V * Wide Operating VCC Range of 0.8 V to 3.6 V * Optimized for 3.3-V Operation * 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation * tpd = 3.3 ns Maximum at 3.3 V * Suitable for Point-to-Point Applications * Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II * ESD Performance Tested Per JESD 22 * 4500-V Human-Body Model * 1500-V Charged-Device Model * APPLICAONS * Active Noise Cancellation ANC * Barcode Scanners * Blood Pressure Monitors * CPAP Machines * Cable Solutions * DLP 3D Machine Vision,Hyperspectral Imaging, Optical Networking, and Spectroscopy * E-Books and Smartphones * Embedded PCs * Field Transmitters: Temperature or Pressure Sensor * Fingerprint Biometrics * HVAC: Heating, Ventilating, and Air Conditioning * Network-Attached Storage NAS * Server Motherboards and PSUs * Software Defined Radios SDR * TVs: High-Definition HDTV, LCD, and Digital * VideoCommunication Systems * Wireless Data Access Cards, Headsets, Keyboards, Mice,and LAN Cards * X-ray: Baggage Scanners, Medical, and Dental
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AUP2G07YFPR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AUP2G07DSFR 德州仪器 | 完全替代 | SN74AUP2G07YFPR和SN74AUP2G07DSFR的区别 |
