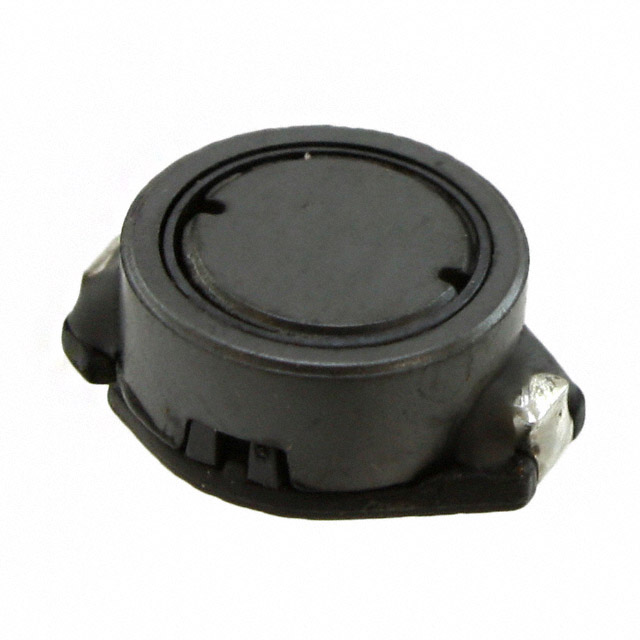

SRR1005-102K

BOURNS  SRR1005-102K  表面贴装功率电感器, SRR1005系列, 1 mH, ± 10%, 屏蔽, 3.2 ohm, 220 mA

Features

■ Available in E12 series

■ Unit height of 5.2mm

■ Current up to 4.5A

Applications

■ Input/output of DC/DC converters

■ Power supplies for:

  • Portable communication equipment

  • Camcorders

  • LCD TVs

  • Car radios

得捷:
FIXED IND 1MH 220MA 3.2 OHM SMD

立创商城:
1mH ±10% 220mA 3.2Ω

贸泽:
固定电感器 1000uH 10% SMD 1005

e络盟:
BOURNS  SRR1005-102K  表面贴装功率电感器, SRR1005系列, 1 mH, ± 10%, 屏蔽, 3.2 ohm, 220 mA

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SRR1005-102K surface mount inductor from Bourns to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 2M Hz. It has an inductance of 1m H. This SMD inductor has a maximum DC current of 220m A with a maximum resistance of 3.2 Ohm. This product is 12.8 mm long, 5.2 mm tall and 10.2 mm deep. This device utilizes wirewound technology. It has a tolerance of 10%.

安富利:
Ind Power Shielded Wirewound 1mH 10% 1KHz 65Q-Factor Ferrite 220mA T/R

Verical:
Inductor Power Shielded Wirewound 1000uH 10% 1KHz 65Q-Factor Ferrite 0.22A 3.2Ohm DCR T/R

Newark:
# BOURNS  SRR1005-102K  Surface Mount Power Inductor, SRR1005 Series, 1 mH, 220 mA, 320 mA, Shielded, 3.2 ohm

MASTER:
Inductor Power Shielded Wirewound 1mH 10% 1KHz 65Q-Factor Ferrite 220mA 3.2Ohm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 1mH 10% 1KHz 65Q-Factor Ferrite 220mA 3.2Ohm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 1mH 10% 1KHz 65Q-Factor Ferrite 220mA 3.2Ohm DCR T/R
