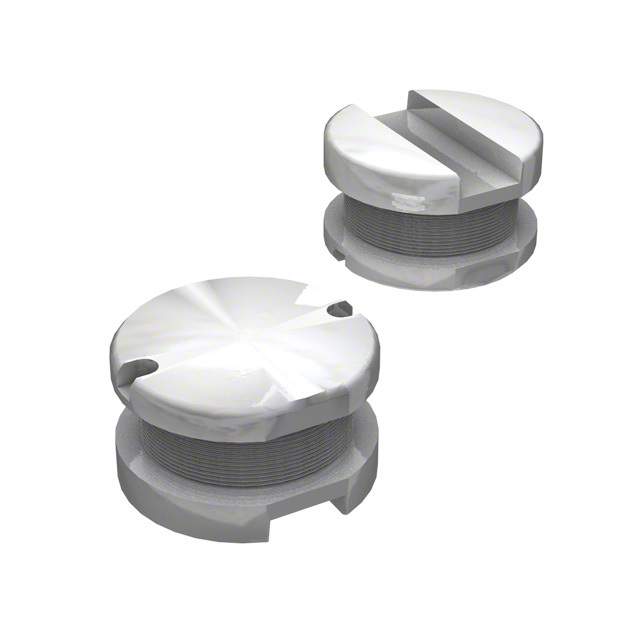

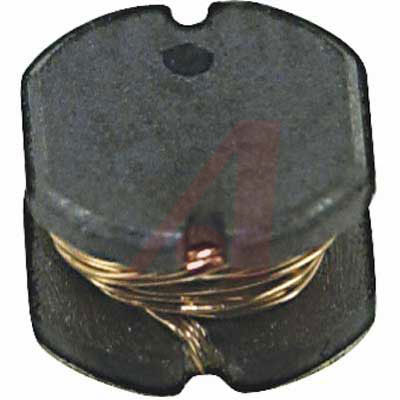

SDR0503-682JL

BOURNS  SDR0503-682JL  表面贴装功率电感器, SDR0503系列, 6.8 mH, ± 5%, 非屏蔽, 80 ohm, 34 mA

6.8mH Unshielded Wirewound Inductor 34mA 80Ohm Max Nonstandard

立创商城:
6.8mH ±5% 34mA 80Ω

得捷:
FIXED IND 6.8MH 34MA 80 OHM SMD

e络盟:

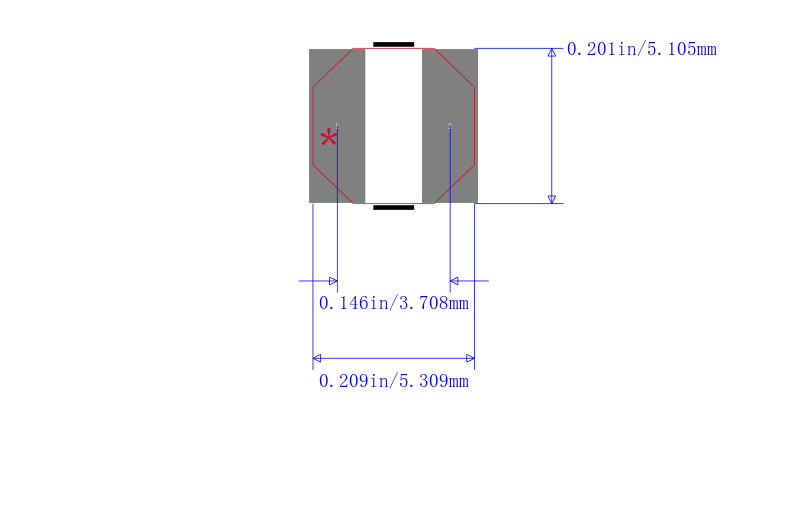

功率电感SMD, 6.8 mH, 34 mA, 非屏蔽, 45 mA, SDR0503系列, 5mm x 4.8mm x 3mm

艾睿:
This power SDR0503-682JL surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 5.3 mm long, 3.3 mm tall and 5.1 mm deep. This SMD inductor has a maximum DC current of 34m A with a maximum resistance of 80 Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 1M Hz. It has an inductance of 6.8m H. It has a tolerance of 5%. This device utilizes wirewound technology.

Allied Electronics:
Inductor; SMT 5.3mm D Max; Power; Q Ref 40; SRF Min 1MHz; 5%; 6800uH

安富利:
Ind Power Wirewound 6.8mH 5% 1KHz 40Q-Factor Ferrite 34mA T/R

Chip1Stop:
Ind Power Wirewound 6.8mH 5% 1KHz 40Q-Factor Ferrite 34mA T/R

Verical:
Inductor Power Wirewound 6800uH 5% 1KHz 40Q-Factor Ferrite 0.034A 80Ohm DCR Automotive T/R

Newark:
# BOURNS  SDR0503-682JL  Surface Mount Power Inductor, SDR0503 Series, 6.8 mH, 34 mA, 45 mA, Unshielded, 80 ohm

Electro Sonic:
Inductor Power Wirewound 6.8mH 5% 1KHz 40Q-Factor Ferrite 34mA 80Ohm DCR Automotive T/R
