SN74LVC1G175YZPR

单路D类DFLIP带异步清零FLOP SINGLE D-TYPE DFLIP FLOP WITH ASYNCHRONOUS CLEAR

Description

This single D-type flip-flop is designed for 1.65-V to 5.5-V VCC operation.

The SN74LVC1G175 device has an asynchronous clear CLR input. When CLR is high, data from the input pin D is transferred to the output pin Q on the clock"s CLK rising edge. When CLR is low, Q is forced into the low state, regardless of the clock edge or data on D.

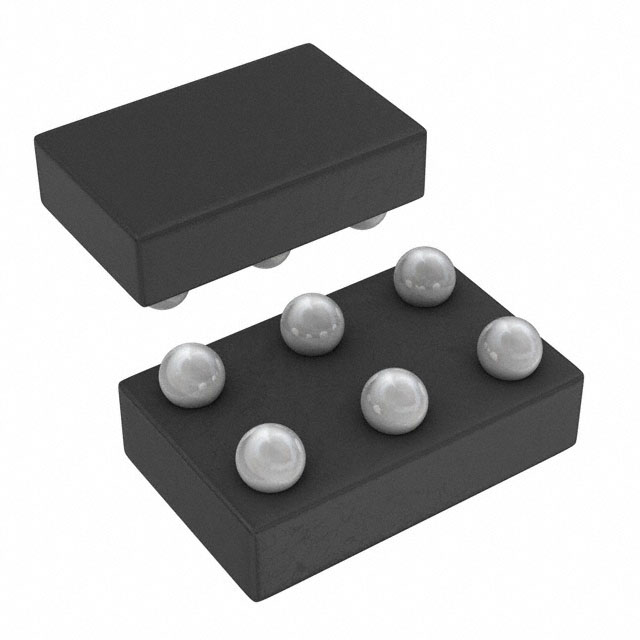

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

Features

• Available in the Texas Instruments NanoFree™ Package

• Supports 5-V VCC Operation

• Inputs Accept Voltages to 5.5 V

• Supports Down Translation to VCC

• Max tpd of 4.3 ns at 3.3 V

• Low Power Consumption, 10-µA Max ICC

• ±24-mA Output Drive at 3.3 V

• Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• ESD Protection Exceeds JESD 22

   – 2000-V Human-Body Model A114-A

   – 200-V Machine Model A115-A

   – 1000-V Charged-Device Model C101

Applications

• TV/Set Top Box/Audio

• EPOS Electronic Point-of-Sale

• Motor Drives

• PC/Notebook

• Servers

• Factory Automation and Control

• Tablets

• Medical Healthcare and Fitness

• Smart Grid

• Telecom Infrastructure

• Enterprise Switching

• Projectors

• Storage
