八路边沿触发D型触发器与Clear OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH CLEAR
Think of Texas Instruments" flip flop device in the event you need to save or retrieve your circuit"s state information quickly. It has a single-ended output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 8 channels per chip.
频率 150 MHz
电源电压DC 4.50V ~ 5.50V
输出接口数 8
输出电流 64.0 mA
电路数 8
通道数 8
时钟频率 150 MHz
位数 8
传送延迟时间 7.40 ns
电压波节 5.00 V
静态电流 30 mA
输入电容 7 pF
输出电流驱动 -500 µA
输入数 8
工作温度Max 85 ℃
工作温度Min 40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20

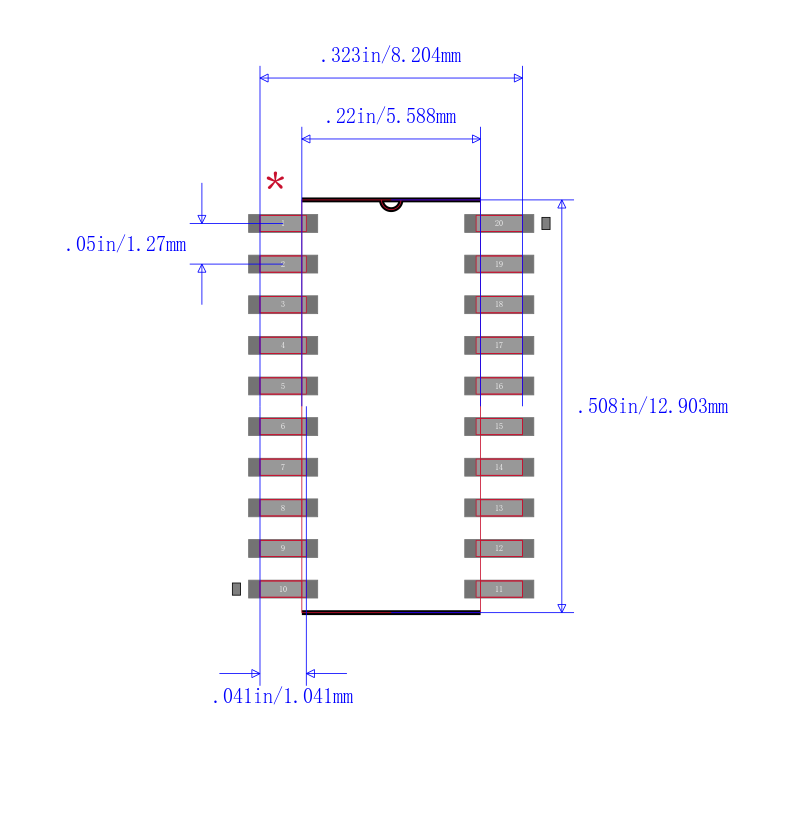

封装 SOP-20
长度 12.6 mm
宽度 5.3 mm
高度 1.95 mm
封装 SOP-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
