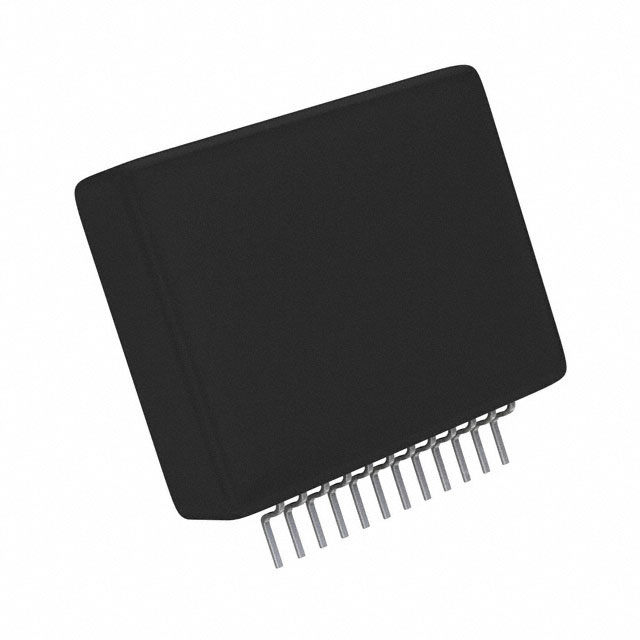

2-Phase Stepper Motor Driver 5V/NV/AV 12Pin SIP
Overview
The is two-phase stepping motor driver hybrid IC HIC that features further miniaturization and improved input logic flexibility as compared to the STK6712 series products.
Features
• Built-in common-mode input protection circuit.
• The input signal logic lines are provided as active-high and active-low pairs, and thus support switching the motor wiring.
• Built-in current detection resistor for reduced external component mounting area on the printed circuit board.
• Wide motor operating range 10 to 45V
Applications
• The STK672-210-E is optimal for use as a stepping motor driver in printers, copiers, XY plotters, and similar equipment.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STK672-210-E ON Semiconductor 安森美 | 当前型号 | 当前型号 |
STK672-210 安森美 | 功能相似 | STK672-210-E和STK672-210的区别 |
