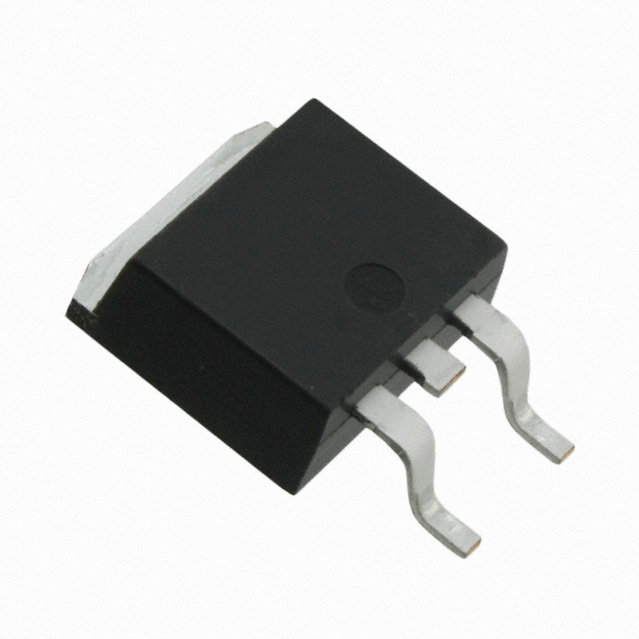

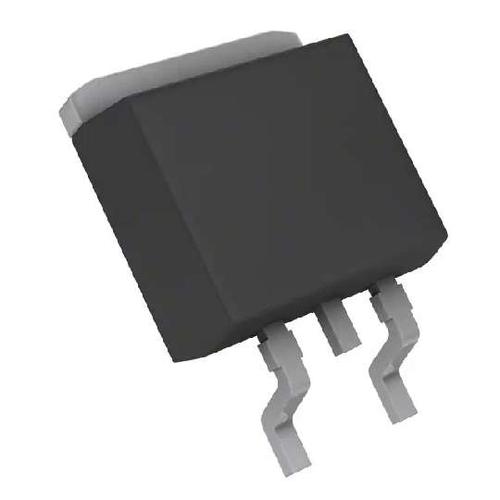

INFINEON SPD15P10P G 晶体管, 射频FET, -100 V, -15 A, 128 W, TO-252
The is a -100V P-channel Power MOSFET that consistently meets highest quality and performance demands in key specifications for power system design such as on-state resistance and Figure of Merit characteristics.
针脚数 3
漏源极电阻 0.16 Ω
极性 P-Channel
耗散功率 128 W
上升时间 23 ns
下降时间 16 ns
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 3
封装 TO-252
长度 6.5 mm
宽度 6.22 mm
高度 2.3 mm
封装 TO-252
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Automotive, Motor Drive & Control, Power Management, Consumer Electronics, Onboard charger, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
