SKM150GB12T4G

SEMIKRON  SKM150GB12T4G  晶体管, IGBT阵列&模块, 双N沟道, 223 A, 1.85 V, 1.2 kV, Module

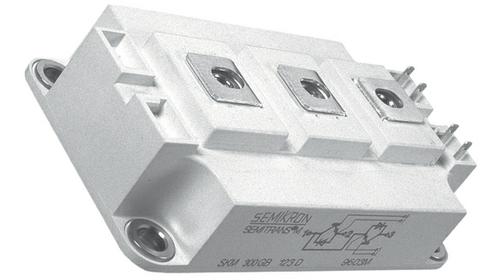

The is a SEMITRANS® 3 fast IGBT Module for use with AC inverter drives and electronic welders at fsw up to 20kHz. It features insulated copper base plate using DBC technology Direct Bonded Copper and increased power cycling capability.

.

Half-bridge switch

.

IGBT4 = 4th generation fast Trench IGBT Infineon

.

CAL4 = Soft switching 4th generation CAL-diode

.

Integrated gate resistor

.

UL recognized, file number E63532
