Bivar SMP2 Series LEDsThe SMP2 series, from Bivar, are in the industry standard PLCC-2 package. They offer a high luminous intensity alongside a wide viewing angle in a variety of colour options. The SMP2 LEDs have a compact, low profile package which is ideal for applications where space is limited. The PLCC-2 package is also robust and therefore suitable for use in a variety of environmental conditions. With long life reliability and low power consumption, the SMP2 series of LEDs are suitable for use in battery power equipment. Other suitable applications include illumination, general indication and backlighting. The SMP2 LEDs can also be used in clusters for high luminous applications. ### 可见光 LED,Bivar

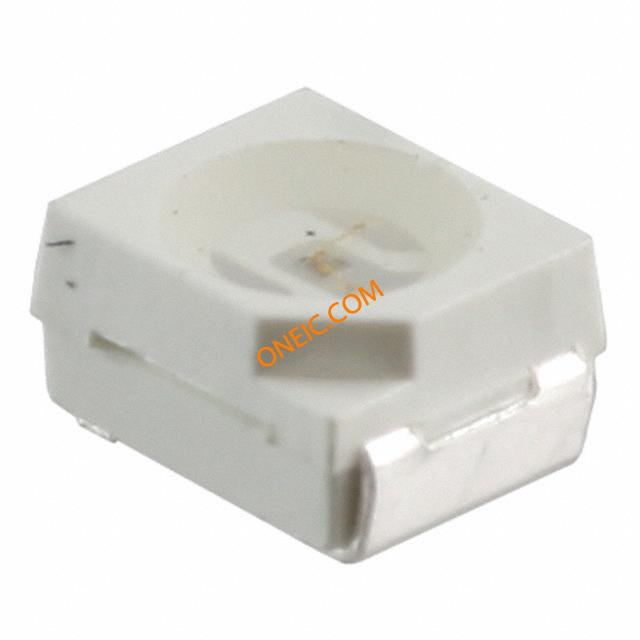

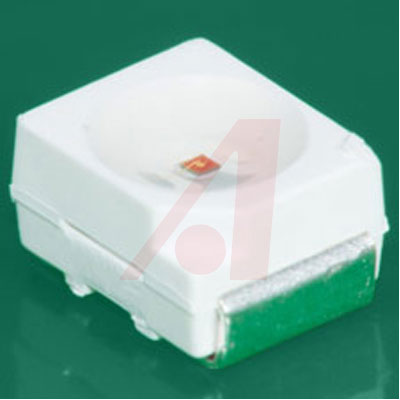

SMP2 Series s
The SMP2 series, from Bivar, are in the industry standard PLCC-2 package. They offer a high luminous intensity alongside a wide viewing angle in a variety of colour options. The SMP2 LEDs have a compact, low profile package which is ideal for applications where space is limited. The PLCC-2 package is also robust and therefore suitable for use in a variety of environmental conditions. With long life reliability and low power consumption, the SMP2 series of LEDs are suitable for use in battery power equipment. Other suitable applications include illumination, general indication and backlighting. The SMP2 LEDs can also be used in clusters for high luminous applications.
### 可见光 LED,Bivar
额定功率 100 mW
针脚数 2
正向电压 3.2 V
波长 470 nm
发光强度 285 mcd
视角 120°
峰值波长 470 nm
测试电流 20 mA
正向电流 20 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装 PLCC-2
长度 3.2 mm
宽度 2.8 mm
高度 2.00 mm
封装 PLCC-2
颜色 Blue
外观颜色 Transparent
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMP2-SBWC Bivar | 当前型号 | 当前型号 |
SMTL2-SBWC Bivar | 功能相似 | SMP2-SBWC和SMTL2-SBWC的区别 |
