SSW-103-02-T-T-RA

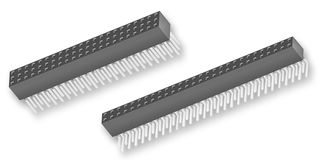

SSW-103-02-T-T-RA图片1
SSW-103-02-T-T-RA图片2
SSW-103-02-T-T-RA图片3
SSW-103-02-T-T-RA图片4
SSW-103-02-T-T-RA概述

SAMTEC SSW-103-02-T-T-RA Board-To-Board Connector, 2.54mm, 9Contacts, Receptacle, SSW Series, Through Hole, 3Rows

9 位置 插座 0.100"(2.54mm) 通孔,直角 锡


得捷:
CONN RCPT 9POS 0.1 TIN PCB R/A


艾睿:
Thanks to Samtec&s;s socket strip SSW-103-02-T-T-RA header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This SKT connector&s;s 9 contacts that are made out of phosphor bronze and plated with matte tin over nickel. Its pitch is 2.54 mm. It has a maximum voltage rating of 550 VAC. It has a socket type gender. It has a right angle body orientation. This is a 3-row connector. This device has a maximum current rating of 5.7 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 8.13 mm long, 7.49 mm tall and 15.11 mm deep. This connector has an operating temperature of -55 to 105 °C. SSW-103-02-T-T-RA is housed in black thermoplastic.


Newark:
# SAMTEC  SSW-103-02-T-T-RA  Board-To-Board Connector, 2.54 mm, 9 Contacts, Receptacle, SSW Series, Through Hole, 3 Rows


SSW-103-02-T-T-RA中文资料参数规格
技术参数

触点数 9

极性 Female

触点电镀 Tin

排数 3

拔插次数 100

额定电流Max 4.7A/触头

工作温度Max 105 ℃

工作温度Min -55 ℃

接触电阻Max 10 mΩ

封装参数

安装方式 Through Hole

引脚间距 2.54 mm

外形尺寸

高度 7.49 mm

引脚间距 2.54 mm

物理参数

颜色 Black

触点材质 Phosphor Bronze

其他

包装方式 Tube

制造应用 Industrial, -

符合标准

RoHS标准 RoHS Compliant

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买SSW-103-02-T-T-RA
型号: SSW-103-02-T-T-RA
描述:SAMTEC SSW-103-02-T-T-RA Board-To-Board Connector, 2.54mm, 9Contacts, Receptacle, SSW Series, Through Hole, 3Rows
