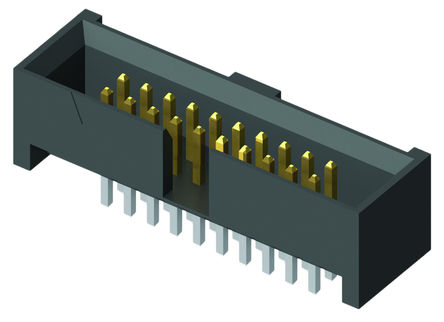

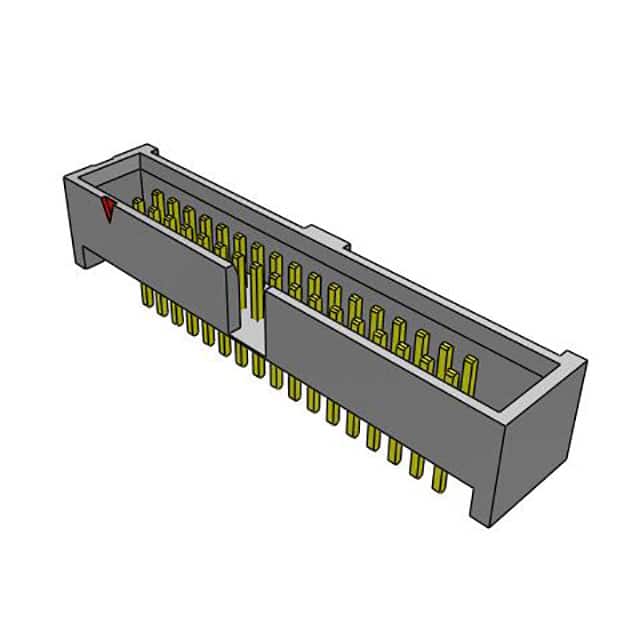

SHF-117-01-L-D-TH

Samtec SHF 系列 1.27mm 有罩印刷电路板管座SHF 系列 1.27mm 节距有罩双排印刷电路板管座，带极化凹口，用于精确配接和镀金触点。 这些 SHF 系列 1.27mm 印刷电路板管座提供直角印刷电路板通孔安装或印刷电路板 SMT 安装，具有多达 50 个触点。 如需配接连接器，请参见 FFSD 和 FFTP 系列 IDC 插座电缆组件### 1.27mm 板到板和线对板 Samtec

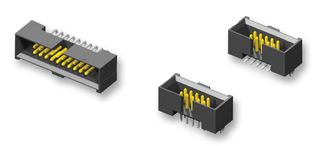

SHF 系列 1.27mm 有罩印刷电路板管座

SHF 系列 1.27mm 节距有罩双排印刷电路板管座，带极化凹口，用于精确配接和镀金触点。 这些 SHF 系列 1.27mm 印刷电路板管座提供直角印刷电路板通孔安装或印刷电路板 SMT 安装，具有多达 50 个触点。 如需配接，请参见 FFSD 和 FFTP 系列 IDC 插座电缆组件

欧时:
Samtec PCB 针座 SHF 系列 34路 1.27mm节距 2排 直向 SHF-117-01-L-D-TH, 焊接端接, 通孔

得捷:
CONN HEADER VERT 34POS 1.27MM

e络盟:
线至板连接器, 1.27 mm, 34 触点, 针座, SHF Series, 通孔安装, 2 排

艾睿:
Look no further than the shrouded SHF-117-01-L-D-TH header connector from Samtec, a great tool to use when board-to-board interconnects is required. This HDR connector&s;s 34 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 1.27 mm. It has a straight body orientation. It has a header type gender. This is a 2-row connector. This device has a maximum current rating of 1.75 A/contact. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. SHF-117-01-L-D-TH is housed in black liquid crystal polymer. This product is 27.94 mm long, 5.33 mm tall and 5.59 mm deep.

安富利:
Conn Shrouded Header HDR 34 POS 1.27mm Solder ST Thru-Hole

Verical:
Conn Shrouded Header HDR 34 POS 1.27mm Solder ST Thru-Hole Tube

Newark:
# SAMTEC  SHF-117-01-L-D-TH  Wire-To-Board Connector, 1.27 mm, 34 Contacts, Header, SHF Series, Through Hole, 2 Rows
