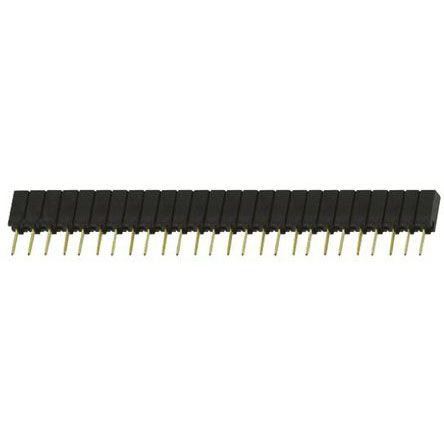

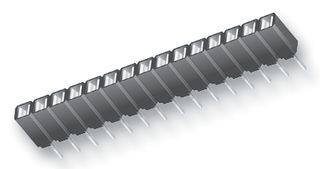

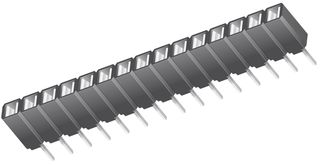

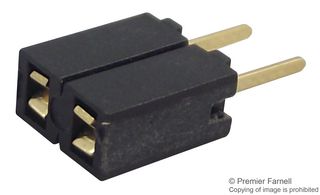

Low Cost 2.54mm Socket Strips - SSA Series

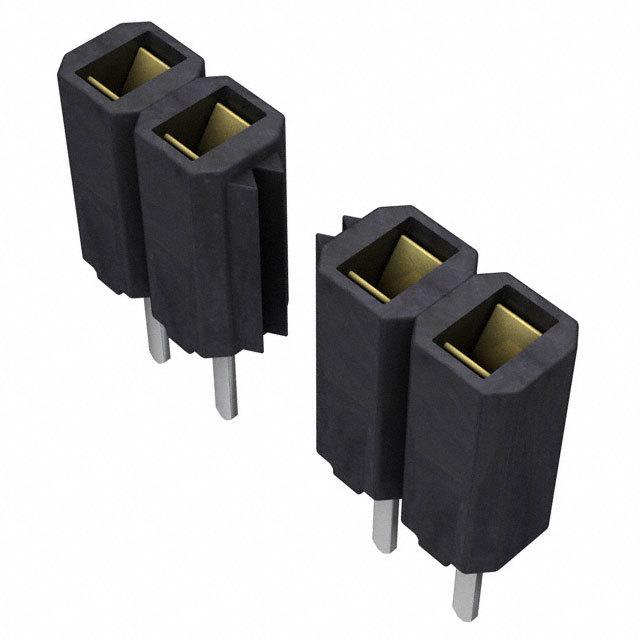

SSA series board to board through hole single row socket strips with a 2.54mm pitch, snap strip feature and standoffs. The body of these SSA series board-to-board PCB sockets is made UL rated 94 V-O high temperature black PET polyester and the double side-swipe contacts are made from phosphor bronze with a 0.25μm gold plating. The temperature range at which these board to board socket strips can be used is -55 to +125°C.
### 注
These SSA series board to board through hole single row socket strips will mate with the following:
TS series screw machine terminal strip - stock number 765-6376 typically.
BBS machine board stacking strips - stock number 766-6442 typically.
BBL machine board stacking strips - stock number 766-6367 typically.
触点数 26
极性 Female
触点电镀 Gold
额定电流 1 A
绝缘电阻 5.00 GΩ
排数 1
易燃性等级 UL 94 V-0
针脚数 26
接触电阻 10.0 mΩ
额定电压 1000 V
安装方式 Through Hole
引脚间距 2.54 mm
长度 66.0 mm
宽度 2.54 mm
高度 5.46 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
