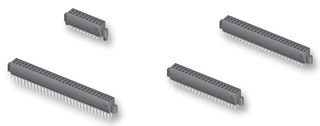

SFM-107-01-L-D图片1

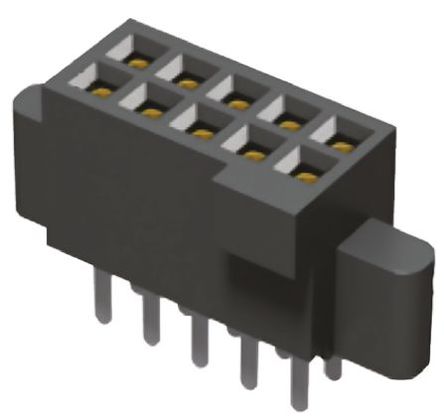

SFM-107-01-L-D图片2
SFM-107-01-L-D图片3
SFM-107-01-L-D图片4
SFM-107-01-L-D图片5
SFM-107-01-L-D图片6
SFM-107-01-L-D图片7
SFM-107-01-L-D概述

Through Hole Sockets - SFM SeriesThe Board-to-Board SFM Series from samtec are a 1.27 mm pitch, dual row, Through Hole socket strip with a body height of 4.57 mm. This Board to Board range of SFM Series 1.27 mm pitch, Through Hole sockets have 0.25 μm Gold plated contacts and Tin plated tails.Operating temperature -55 to 125° C ### 注**The SFM Series mates with:** TFM Series headers see stock number 481-4667 typical FTS Series micro terminal strips see stock number 481-4702 typical FTSH Series micro headers see stock number 767-6774 typical### 1.27mm 板到板和线对板 Samtec

Through Hole Sockets - SFM Series

The Board-to-Board SFM Series from samtec are a 1.27 mm pitch, dual row, Through Hole socket strip with a body height of 4.57 mm. This Board to Board range of SFM Series 1.27 mm pitch, Through Hole sockets have 0.25 μm Gold plated contacts and Tin plated tails.

Operating temperature -55 to 125° C

### 注

**The SFM Series mates with:**

TFM Series headers see stock number 481-4667 typical

FTS Series micro terminal strips see stock number 481-4702 typical

FTSH Series micro headers see stock number 767-6774 typical

SFM-107-01-L-D中文资料参数规格
技术参数

触点数 14

极性 Female

触点电镀 Gold

额定电流 5 A

排数 2

针脚数 14

拔插次数 10000

额定电流Max 3.2A/触头

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压Max 250 VAC

额定电压 350 VAC

接触电阻Max 15 mΩ

封装参数

安装方式 Through Hole

外形尺寸

高度 4.57 mm

物理参数

外壳颜色 Black

触点材质 Beryllium Copper

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15
