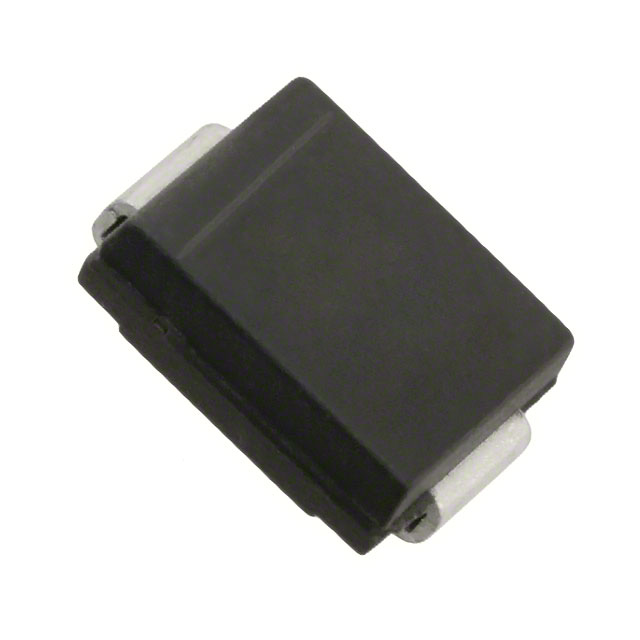

SMCJ 系列 54 V 1500 W 表面贴装 双向 TVS 二极管 - DO-214AB
87.1V 夹子 17.2A Ipp TVS - 表面贴装型 SMC
得捷:
TVS DIODE 54VWM 87.1VC SMC
贸泽:
TVS Diodes - Transient Voltage Suppressors 1500W 54.0V
艾睿:
Sleep easy, never worry about surges again with this SMCJ54CA-13-F TVS diode from Diodes Zetex. Its maximum leakage current is 5 μA. This device&s;s maximum clamping voltage is 87.1 V and minimum breakdown voltage is 60 V. Its peak pulse power dissipation is 1500 W. Its test current is 1 mA. This TVS diode has an operating temperature range of -55 °C to 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
安富利:
Diode TVS Single Bi-Dir 54V 1.5KW 2-Pin SMC T/R
Chip1Stop:
Diode TVS Single Bi-Dir 54V 1.5KW 2-Pin SMC T/R
Verical:
Diode TVS Single Bi-Dir 54V 1.5KW 2-Pin SMC T/R
儒卓力:
**TRANSIL BI 1,5KW 63V SMC **
Win Source:
TVS DIODE 54VWM 87.1VC SMC
额定电压DC 54.0 V
工作电压 54 V
电容 5000 pF
额定功率 1.50 kW
击穿电压 60 V
电路数 1
正向电压 3.5 V
耗散功率 1500 W
钳位电压 87.1 V
测试电流 1 mA
脉冲峰值功率 1500 W
最小反向击穿电压 60 V
击穿电压 60 V
工作温度Max 150 ℃
工作温度Min 55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

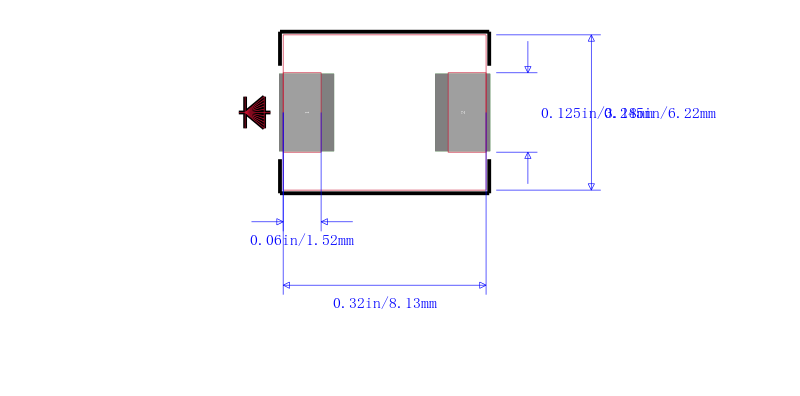

封装 SMC

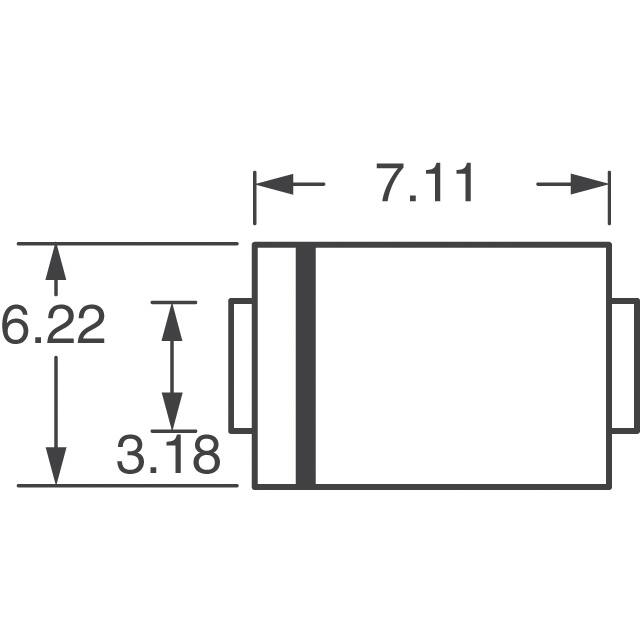

长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 SMC
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 -, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMCJ54CA-13-F Diodes 美台 | 当前型号 | 当前型号 |
SMDJ54CA 力特 | 功能相似 | SMCJ54CA-13-F和SMDJ54CA的区别 |
SMCJ54CA-E3/57T 威世 | 功能相似 | SMCJ54CA-13-F和SMCJ54CA-E3/57T的区别 |
SMCJ54CA-TP 美微科 | 功能相似 | SMCJ54CA-13-F和SMCJ54CA-TP的区别 |
