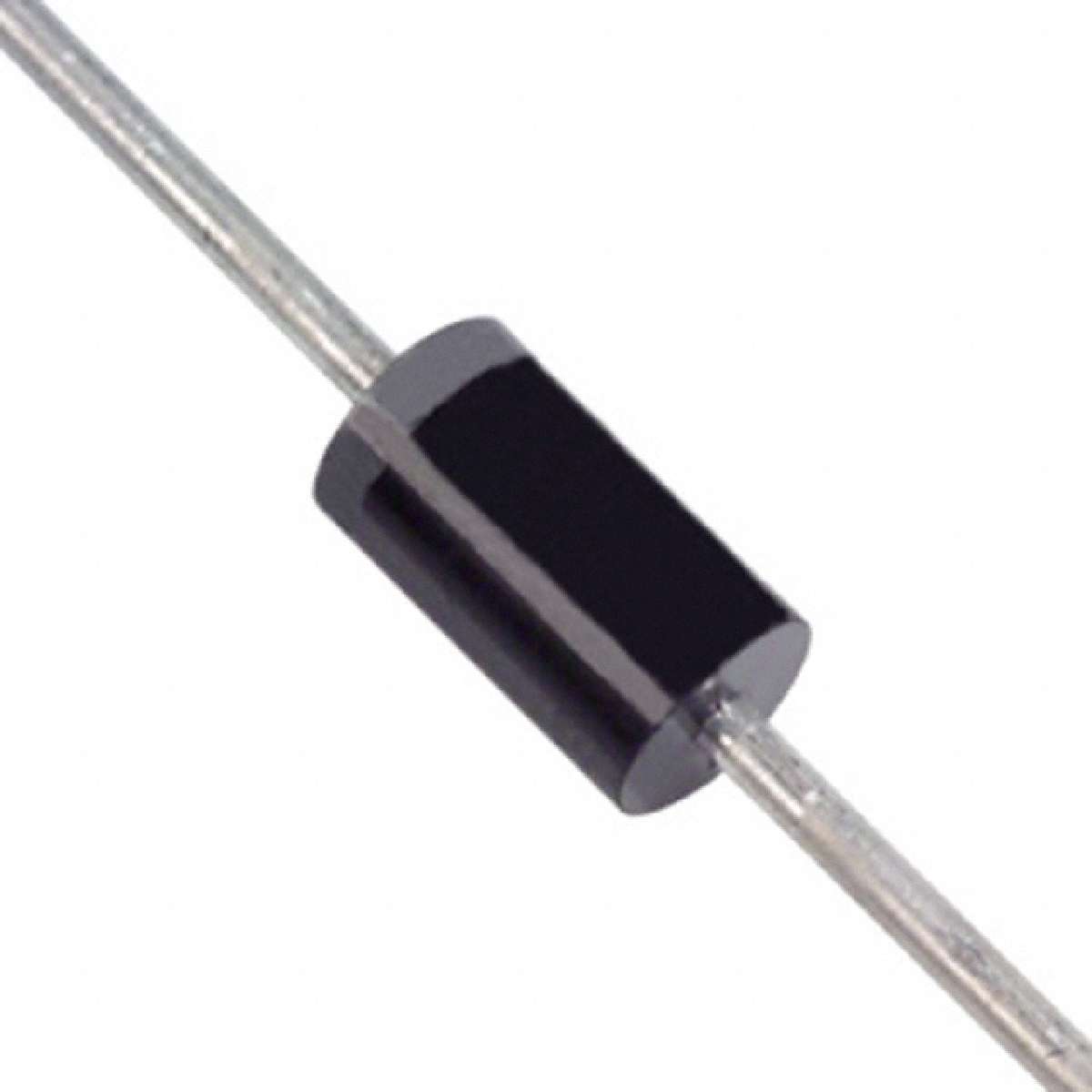

SB520-T

DIODE SCHOTTKY 20V 5A DO201AD

Features

Epitaxial Construction

Guard Ring Die Construction for Transient Protection

Low Power Loss, High Efficiency

High Surge Capability

High Current Capability and Low Forward Voltage Drop

Surge Overload Rating to 150A Peak

For Use in Low Voltage, High Frequency Inverters, Free

Wheeling, and Polarity Protection Applications

Mechanical Data

Case: DO-201AD

Case Material: Molded Plastic. UL Flammability

Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020C

Terminals: FinishBright Tin. Plated Leads Solderable

per MIL-STD-202, Method 208

Polarity: Cathode Band

Mounting Position: Any

Ordering Information: See Last Page

Marking: Type Number

Weight: 1.1 grams approximate
