TY551M

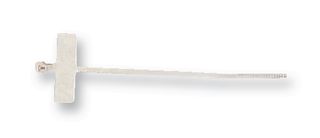

TY551M图片1

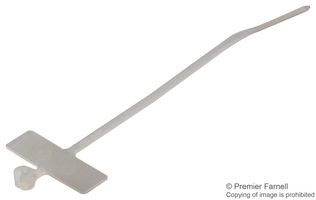

TY551M图片2

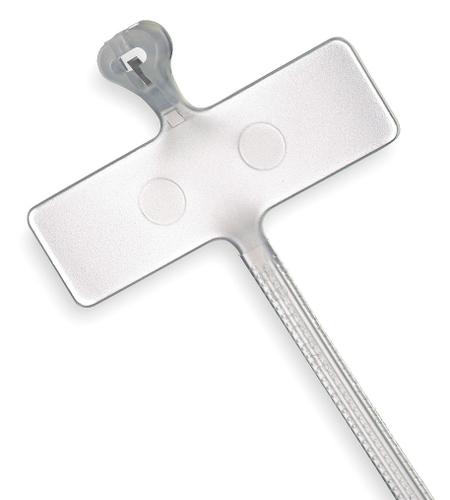

TY551M图片3
TY551M图片4
TY551M图片5
TY551M概述

THOMAS & BETTS  TY551M  电缆扎带, TY-RAP系列, 带标识片

The is a Ty-RAP® 92 x 2.29mm natural self-locking Identification Cable Tie made of nylon 6.6 polyamide 6.6. This cable tie features smooth edges designed to prevent cable insulation damage. Integrally formed nylon pawl combines low insertion force and high locking strength. Rounded head reduces snags, makes pulling bundles through tight spaces easier. Two-sided finger grip design helps the installer grasp and pull the tie snug. Tab in centre of the tail keeps the tail from popping out while being threaded and holds it securely for final tightening. Quick, easy pull-through reduces operator fatigue, increases productivity. They may be marked with the special black or red marking pen which produces a permanent legend or they can be heat stamped. Because the ties serve the dual purpose of tying and identifying, will achieve extra economies. They can be applied with the standard Ty-Rap® tying tools used for regular ties.

.
Turned-up rail orients tail to head for easy assembly, easier to pick up on flat surface
.
-40 to 185°F Temperature range
.
UL94V-2 Flammability rating
TY551M中文资料参数规格
外形尺寸

长度 91.4 mm

宽度 2.36 mm

高度 92.0 mm

物理参数

颜色 Natural

材质 Nylon

工作温度 -40℃ ~ 85℃

符合标准

RoHS标准 RoHS Compliant

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买TY551M
型号: TY551M
制造商: Thomas & Betts
描述:THOMAS & BETTS  TY551M  电缆扎带, TY-RAP系列, 带标识片
替代型号TY551M
型号/品牌 代替类型 替代型号对比

TY551M

Thomas & Betts

当前型号

当前型号

PLM1M-C

泛达

功能相似

TY551M和PLM1M-C的区别

BM1M-C

泛达

功能相似

TY551M和BM1M-C的区别

8409-0355

PRO Power

功能相似

TY551M和8409-0355的区别
