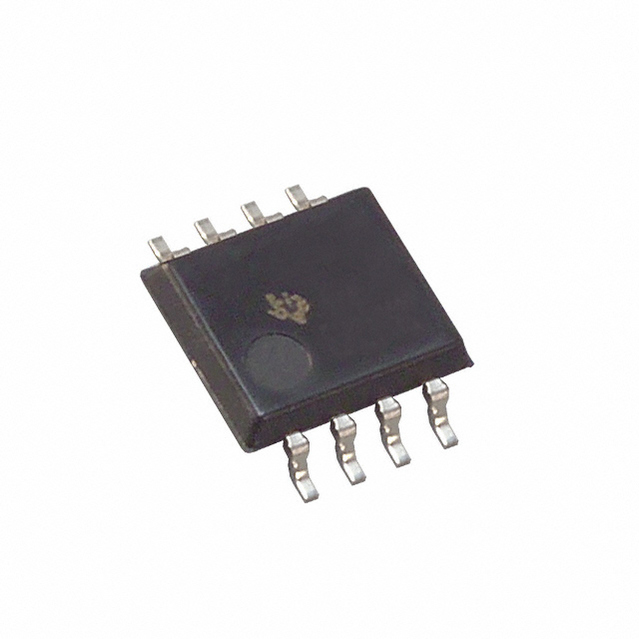

双路低功耗通用运算放大器 8-SO 0 to 70
description
The TL022 is a dual low-power operational amplifier designed to replace higher power devices in many applications without sacrificing system performance. High input impedance, low supply currents, and low equivalent input noise voltage over a wide range of operating supply voltages result in an extremely versatile operational amplifier for use in a variety of analog applications including battery-operated circuits. Internal frequency compensation, absence of latch-up, high slew rate, and output short-circuit protection assure ease of use.
Very Low Power Consumption
Power Dissipation With ±2-V Supplies 170 µW Typ
Low Input Bias and Offset Currents
Output Short-Circuit Protection
Low Input Offset Voltage
Internal Frequency Compensation
Latch-Up-Free Operation
Popular Dual Operational Amplifier Pinout
供电电流 130 µA
电路数 2
通道数 2
共模抑制比 60 dB
输入补偿漂移 0.00 V/K
带宽 500 kHz
转换速率 500 mV/μs
增益频宽积 500 kHz
输入补偿电压 1 mV
输入偏置电流 100 nA
工作温度Max 70 ℃
工作温度Min 0 ℃
增益带宽 0.5 MHz
共模抑制比Min 60 dB
电源电压 10V ~ 30V
电源电压Max 30 V
电源电压Min 10 V
安装方式 Surface Mount
引脚数 8
封装 SOP-8
长度 6.2 mm
宽度 5.3 mm
高度 1.95 mm
封装 SOP-8
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TL022CPSR TI 德州仪器 | 当前型号 | 当前型号 |
TL022CPSRG4 德州仪器 | 完全替代 | TL022CPSR和TL022CPSRG4的区别 |
TL022CPSRE4 德州仪器 | 完全替代 | TL022CPSR和TL022CPSRE4的区别 |
