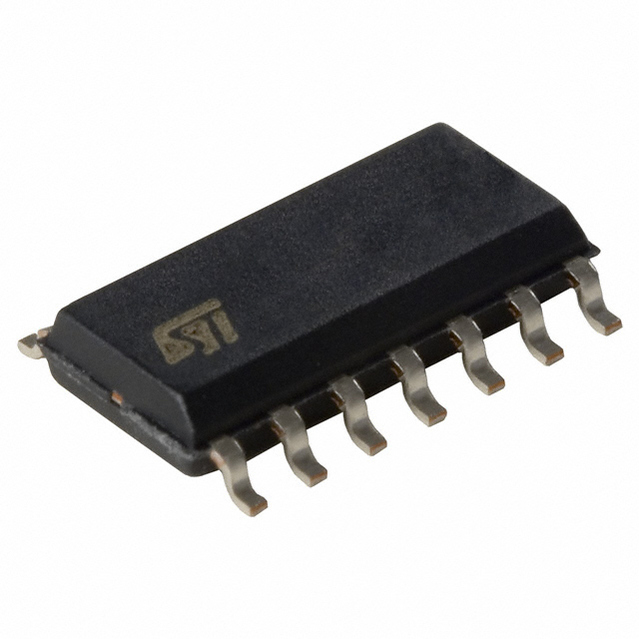

TSV994AIDT

轨到轨输入/输出20 MHz的GBP运算放大器 Rail-to-rail input/output 20 MHz GBP operational amplifiers

The TSV99x and TSV99xA family of single, dual, and quad operational amplifiers offers low voltage operation and rail-to-rail input and output. These devices feature an excellent speed/power consumption ratio, offering a 20 MHz gain-bandwidth, stable for gains above 4 100 pF capacitive load, while consuming only 1.1 mA maximum at 5 V. They also feature an ultra-low input bias current. These characteristics make the TSV99x family ideal for sensor interfaces, battery-supplied and portable applications, as well as active filtering. These characteristics make the TSV99x, TSV99xA family ideal for sensor interfaces, battery-supplied and portable applications, as well as active filtering.

**Key Features**

.

Low input offset voltage: 1.5 mV max A grade

.

Rail-to-rail input and output

.

Wide bandwidth 20 MHz

.

Stable for gain ≥ 4 or ≤ -3

.

Low power consumption: 820 µA typ

.

High output current: 35 mA

.

Operating from 2.5 V to 5.5 V

.

Low input bias current, 1 pA typ

.

ESD internal protection ≥ 5 kV
