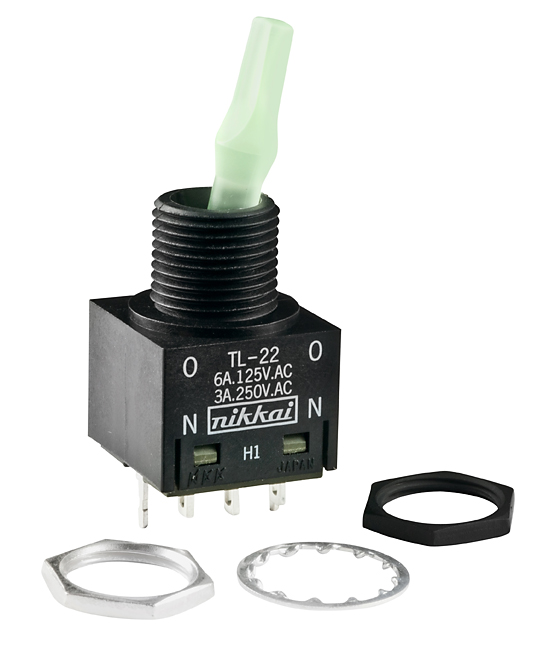

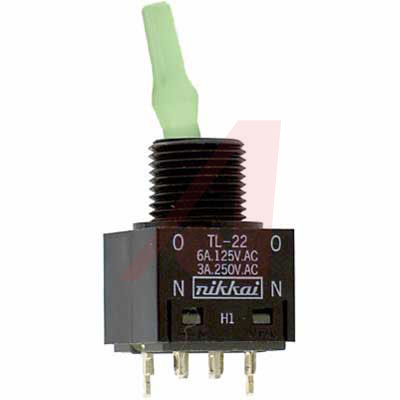

TL22DFAW015F

TL 系列 双刀双掷 开 空 开 绿色 完全发光 钮子开关

Fully illuminated toggles with bright or super bright LED illumination. Made with antistatic material that withstands 20 kilovolts electrostatic discharge, bushing mount, interior O-ring, solder lug terminals. 12 mm dia. threaded bushing.

.

*Resistive Electrical Capacity:** 6 A @ 125 VAC or 3 A @ 250 VAC. **Dielectric Strength:** 1000 VAC min. between contacts for 1 minute min. **Electrical Life:** 25,000 operations min. **Nominal Operation Force:** 1.9 Newtons. **Operation Temperature:** –10°C through +50°C. **Maximum Panel Thickness:** 0.157". **Hardware:** 1 black hex nut, 1 hex nut and 1 lockwasher.

**Features:**

* Fully Illuminated Toggles

* Bright or Super Bright LED Illumination

* Meets IP65 of IEC60529 When Used with AT401P O-Ring
