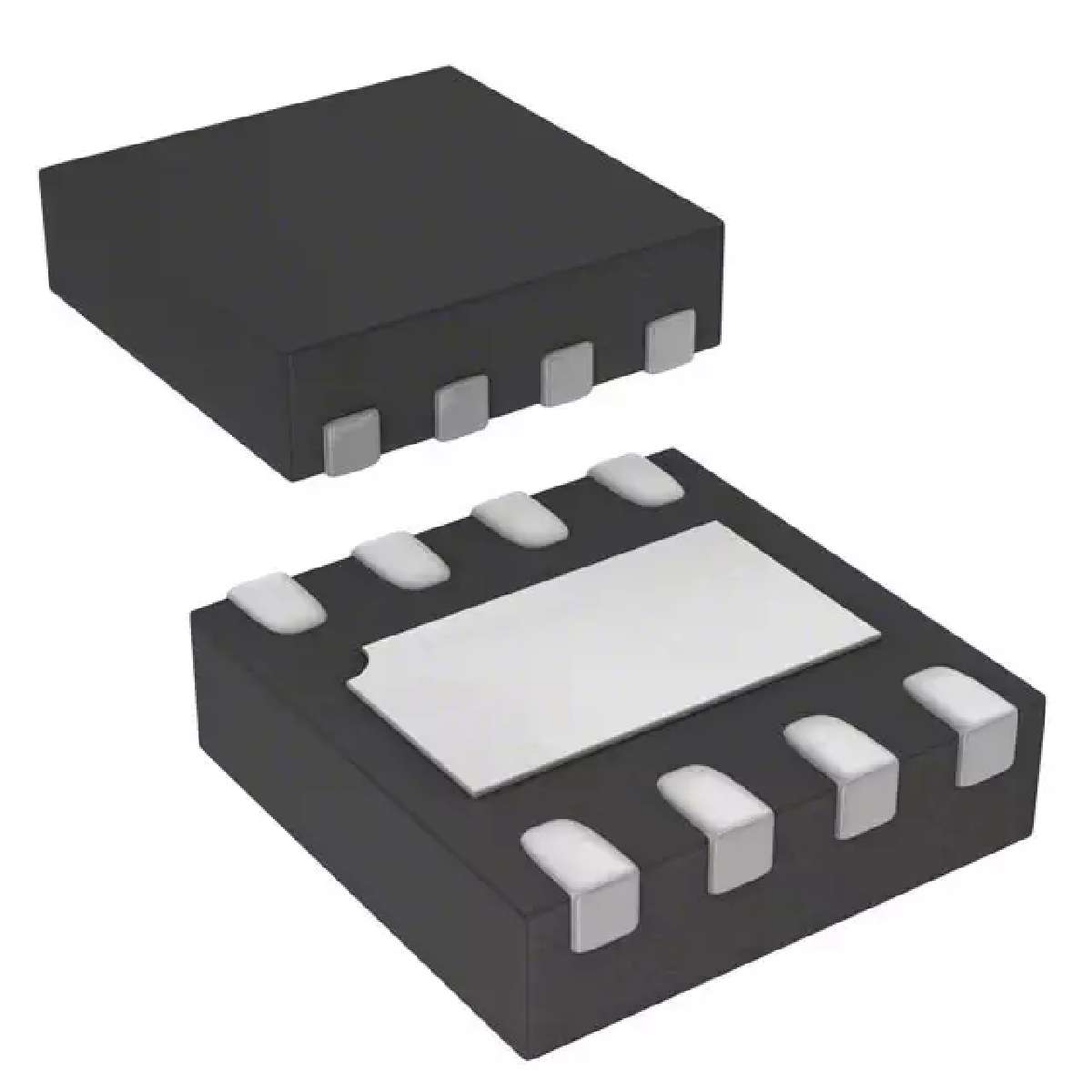

TS391 系列 36 V 25 nA 低功耗 单 电压比较器 - DFN-8
通用 CMOS,DTL,ECL,开路集电极,TTL 8-DFN(2x2)
得捷:
IC COMPARATOR 1 GEN PUR 8DFN
立创商城:
TS391IQ2T
艾睿:
Use this TS391IQ2T comparator circuit from STMicroelectronics to get the larger of the two input signals. It has an open collector output. Its typical dual supply voltage is ±3|±5|±9|±12|±15 V, with a minimum of ±1 V and maximum of ±18 V. This comparator has a minimum operating temperature of -40 °C and a maximum of 125 °C. This device uses one or two power supplies. This device is made with bipolar technology. It has a single channel per chip.
安富利:
Comparator Single ±18V/36V 8-Pin DFN EP T/R
富昌:
TS391 系列 36 V 25 nA 低功耗 单 电压比较器 - DFN-8
Chip1Stop:
Comparator Single ±18V/36V 8-Pin DFN EP T/R
Verical:
Comparator Single ±18V/36V 8-Pin DFN EP T/R
Win Source:
IC VOLT COMPARATOR SGL 8DFN
输出电流 16mA @5V
供电电流 0.5 mA
通道数 1
耗散功率 500 mW
热阻 57 ℃/W
输入补偿电压 5 mV
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 500 mW
电源电压 2V ~ 36V
电源电压Max 36 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 8
封装 DFN-8
封装 DFN-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
