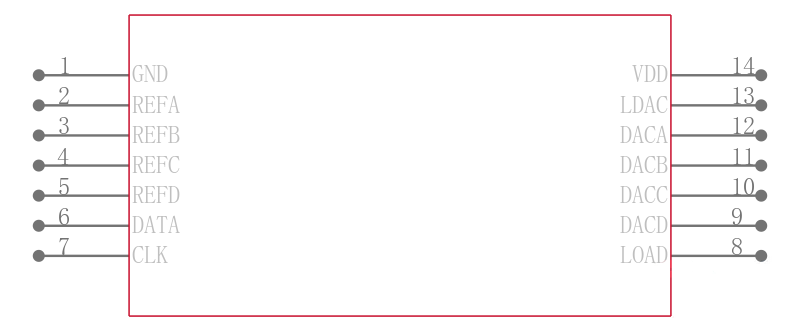

TLV5620IDR

翻两番8位数字 - 模拟转换器 QUADRUPLE 8-BIT DIGITAL-TO-ANALOG CONVERTERS

description

The TLV5620C and TLV5620I are quadruple 8-bit voltage output digital-to-analog converters DACs with buffered reference inputs high impedance. The DACs produce an output voltage that ranges between either one or two times the reference voltages and GND; and, the DACs are monotonic. The device is simple to use, because it runs from a single supply of 3 V to 3.6 V. A power-on reset function is incorporated to ensure repeatable start-up conditions.

Four 8-Bit Voltage Output DACs

3-V Single-Supply Operation

Serial Interface

High-Impedance Reference Inputs

Programmable for 1 or 2 Times Output Range

Simultaneous Update Facility

Internal Power-On Reset

Low-Power Consumption

Half-Buffered Output

applications

Programmable Voltage Sources

Digitally Controlled Amplifiers/Attenuators

Mobile Communications

Automatic Test Equipment

Process Monitoring and Control

Signal Synthesis
