8位乘法数字 - 模拟转换器 8-BIT MULTIPLYING DIGITAL-TO-ANALOG CONVERTERS
description
The TLC7524C, TLC7524E, and TLC7524I are CMOS, 8-bit, digital-to-analog converters DACs designed for easy interface to most popular microprocessors.
The devices are 8-bit, multiplying DACs with input latches and load cycles similar to the write cycles of a random access memory. Segmenting the high-order bits minimizes glitches during changes in the most significant bits, which produce the highest glitch impulse. The devices provide accuracy to 1/2LSB without the need for thin-film resistors or laser trimming, while dissipating less than 5mW typically.
Featuring operation from a 5V to 15V single supply, these devices interface easily to most microprocessor buses or output ports. The 2- or 4-quadrant multiplying makes these devices an ideal choice for many microprocessor-controlled gain-setting and signal-control applications.
• Easily Interfaced to Microprocessors
• On-Chip Data Latches
• Monotonic Over the Entire A/D Conversion Range
• Segmented High-Order Bits Ensure Low-Glitch Output
• Interchangeable With Analog Devices AD7524, PMI PM-7524, and Micro Power Systems MP7524
• Fast Control Signaling for Digital Signal-Processor Applications Including Interface With TMS320
• CMOS Technology
输出接口数 1
供电电流 2.00 mA
通道数 1
位数 8
耗散功率 5 mW
采样率 10.0 mHz
功耗 5 mW
过温保护 No
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 5 mW
数模转换数DAC 1
电源电压Max 15.5 V
电源电压Min 4.75 V

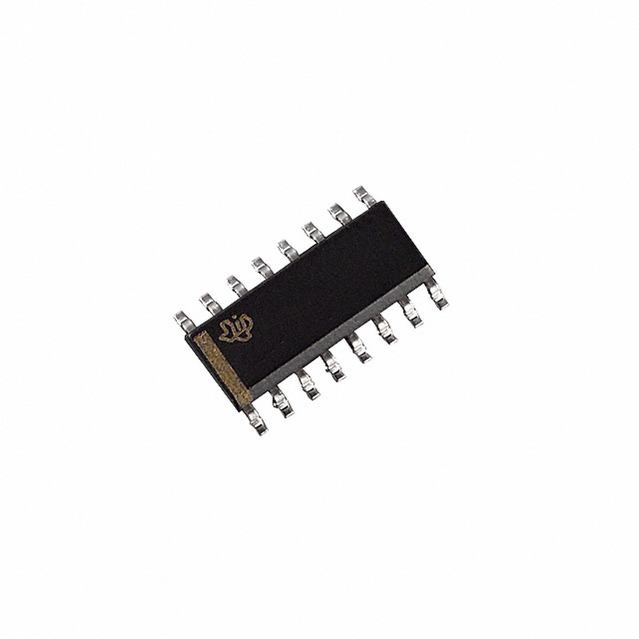

安装方式 Surface Mount
引脚数 16
封装 SOIC-16
高度 1.58 mm
封装 SOIC-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLC7524ED TI 德州仪器 | 当前型号 | 当前型号 |
TLC7524CD 德州仪器 | 类似代替 | TLC7524ED和TLC7524CD的区别 |
TLC7524ID 德州仪器 | 类似代替 | TLC7524ED和TLC7524ID的区别 |
TLC7524CDR 德州仪器 | 类似代替 | TLC7524ED和TLC7524CDR的区别 |
