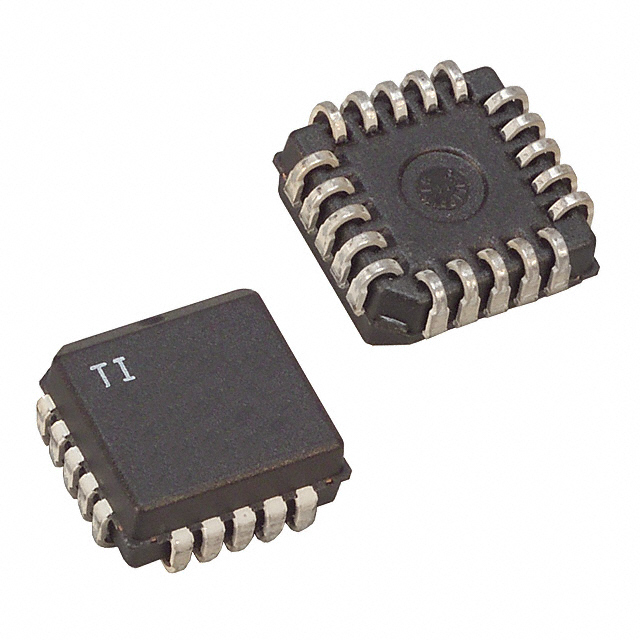

TLC541IFNR

11Channel Single ADC SAR 40KSPS 8Bit Serial 20Pin PLCC T/R

description

The TLC540 and TLC541 are CMOS A/D converters built around an 8-bit switched capacitor successive-approximation A/D converters. They are designed for serial interface to a microprocessor or peripheral via a 3-state output with up to four control inputs, including independent SYSTEM CLOCK, I/O CLOCK, chip select CS, and ADDRESS INPUT. A 4-MHz system clock for the TLC540 and a 2.1-MHz system clock for the TLC541 with a design that includes simultaneous read/write operation allow high-speed data transfers and sample rates of up to 75,180samples per second for the TLC540 and 40,000 samples per second for the TLC541. In addition to the high-speed converter and versatile control logic, there is an on-chip 12-channel analog multiplexer that can be used to sample any one of 11 inputs or an internal self-test voltage, and a sample-and-hold that can operate automatically or under microprocessor control.

● 8-Bit Resolution A/D Converter

● Microprocessor Peripheral or Stand-Alone Operation

● On-Chip 12-Channel Analog Multiplexer

● Built-In Self-Test Mode

● Software-Controllable Sample and Hold

● Total Unadjusted Error . . . ±0.5 LSB Max

● TLC541 Is Direct Replacement for Motorola

   MC145040 and National Semiconductor ADC0811. TLC540 Is Capable of Higher Speed

● Pinout and Control Signals Compatible With TLC1540 Family of 10-Bit A/D Converters

● CMOS Technology
