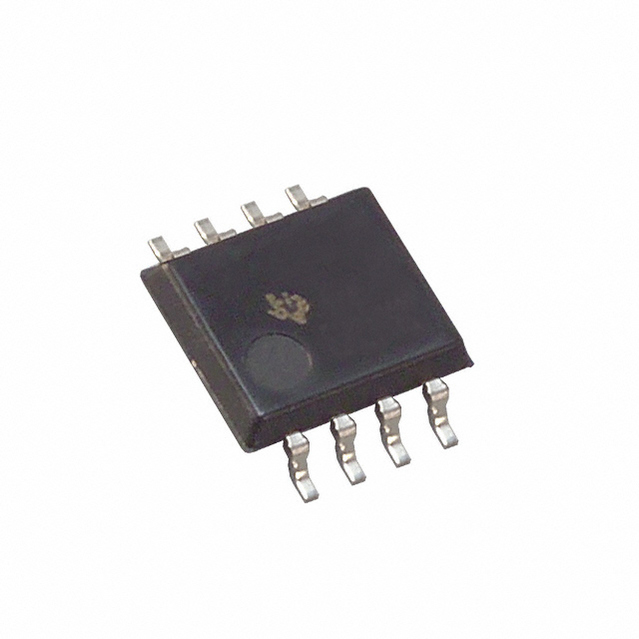

TLC372CPSRG4

模拟比较器 Dual LinCMOS Differential

差分 CMOS，MOS，开路漏极，TTL 8-SO

得捷:
IC COMPARATOR 2 DIFF 8SO

贸泽:
模拟比较器 Dual LinCMOS Differential

艾睿:
Comparator Dual R-R O/P ±8V/16V 8-Pin SOP T/R

安富利:
This device is fabricated using LinCMOS™ technology and consists of two independent voltage comparators, each designed to operate from a single power supply. Operation from dual supplies is also possible if the difference between the two supplies is 2 V to 18 V. Each device features extremely high input impedance typically greater than 1012Ω, allowing direct interfacing with high-impedance sources. The outputs are n-channel open-drain configurations and can be connected to achieve positive-logic wired-AND relationships.The TLC372 has internal electrostatic discharge ESD protection circuits and has been classified with a 1000-V ESD rating using human body model testing. However, care should be exercised in handling this device as exposure to ESD may result in a degradation of the device parametric performance.The TLC372C is characterized for operation from 0°C to 70°C. The TLC372I is characterized for operation from –40°C to 85°C. The TLC372M is characterized for operation over the full military temperature range of –55°C to 125°C. The TLC372Q is characterized for operation from –40°C to 125°C.

Chip1Stop:
Comparator Dual ±8V/16V 8-Pin SOP T/R

Verical:
Comparator Dual ±8V/16V 8-Pin SOP T/R

德州仪器TI:
Dual General Purpose LinCMOS™ Differential Comparator

Win Source:
LinCMOSE DUAL DIFFERENTIAL COMPARATORS
