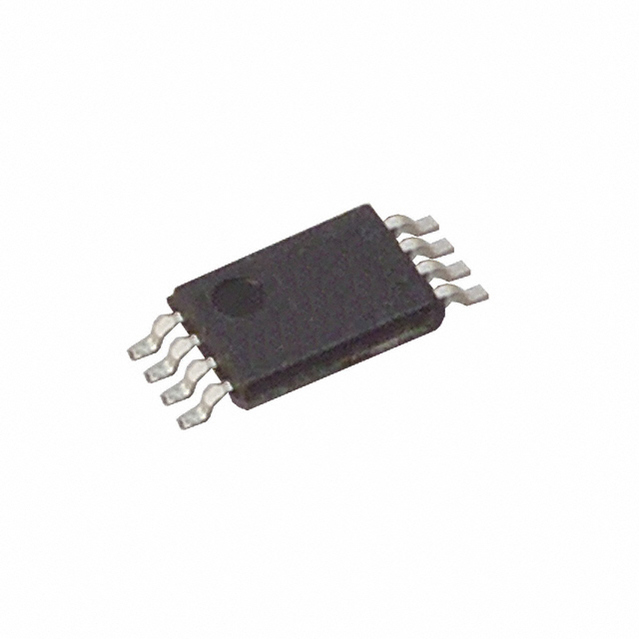

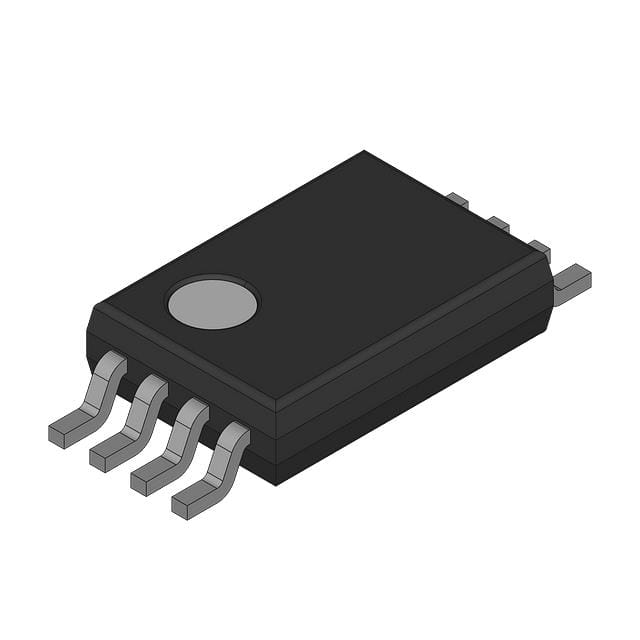

路LinCMOS DUAL高差比较器 LinCMOS DUAL DIFFERENTAL COMPARATOR
Comparator Differential CMOS, MOS, Open-Drain, TTL 8-TSSOP
得捷:
IC COMPARATOR 2 DIFF 8TSSOP
立创商城:
TLC352IPWR
德州仪器TI:
Dual, Low Voltage, LinCMOS™ Differential Comparator
艾睿:
Who knew comparing two input signals would be so easy with this TLC352IPWR comparator circuit from Texas Instruments. It has an open drain output. Its maximum power dissipation is 500 mW. Its typical dual supply voltage is ±3|±5 V, with a minimum of ±0.7 V and maximum of ±8 V. This comparator has a temperature range of -40 °C to 85 °C. This device uses one or two power supplies. It has 2 channels per chip. This device utilizes linCMOS technology.
安富利:
Comparator Dual ±8V/16V 8-Pin TSSOP T/R
Chip1Stop:
Comparator Dual ±8V/16V 8-Pin TSSOP T/R
Verical:
Comparator Dual ±8V/16V 8-Pin TSSOP T/R
电源电压DC 1.40V min
输出电流 20 mA
供电电流 0.3 mA
电路数 2
通道数 2
耗散功率 500 mW
输入补偿电压 5 mV
输入偏置电流 0.005 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 500 mW
电源电压Max 16 V
电源电压Min 1.4 V
安装方式 Surface Mount
引脚数 8
封装 TSSOP-8
长度 3 mm
宽度 4.4 mm
高度 1 mm
封装 TSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLC352IPWR TI 德州仪器 | 当前型号 | 当前型号 |
TLC352IPWG4 德州仪器 | 完全替代 | TLC352IPWR和TLC352IPWG4的区别 |
TLC352IPW 德州仪器 | 类似代替 | TLC352IPWR和TLC352IPW的区别 |
