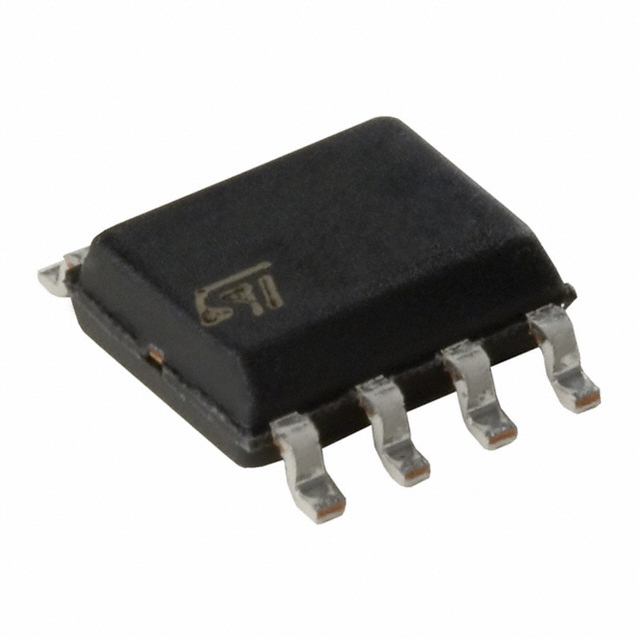

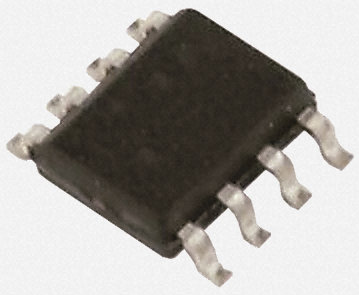

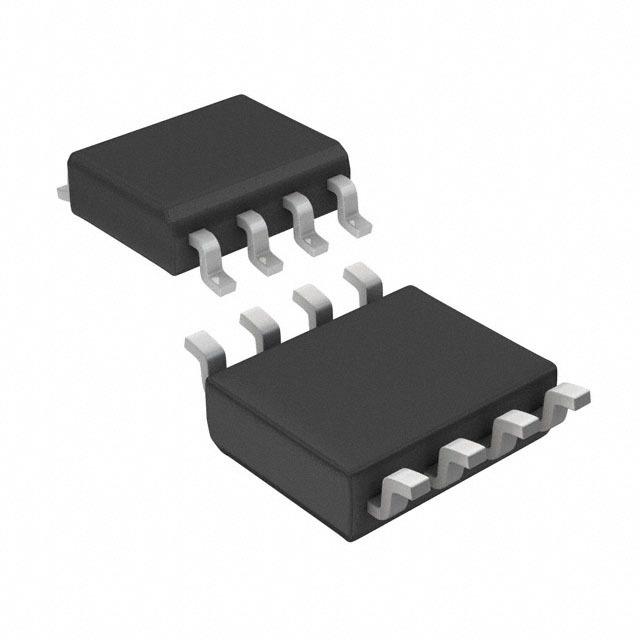

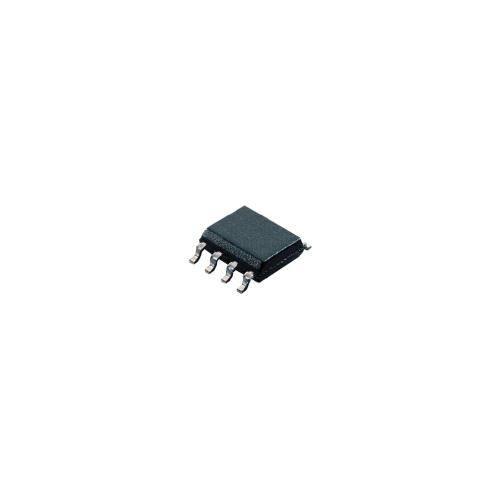

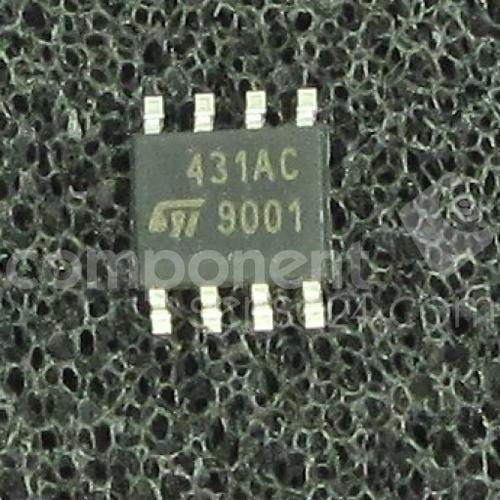

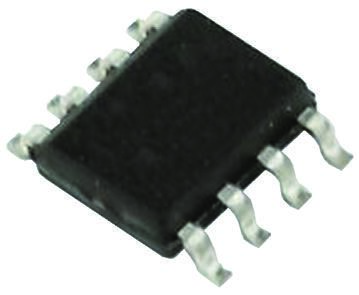

STMICROELECTRONICS TL431ACD 电压基准, 分流 - 可调, TL431系列, 2.495V至36V, SOIC-8
Description
The TL431 is a programmable shunt voltage reference with guaranteed temperature stability over the entire operating temperature range.
The output voltage may be set to any value between 2.5 V and 36 V with two external resistors.
The TL431 operates with a wide current range from 1 to 100 mA with a typical dynamic impedance of 0.22 Ω.
Features
■ Adjustable output voltage: 2.5 to 36 V
■ Sink current capability: 1 to 100 mA
■ Typical output impedance: 0.22Ω
■ 1% and 2% voltage precision
电源电压DC 36.0V max
容差 ±1 %
输入电压DC 2.50V ~ 36.0V
输出电压 2.495V ~ 36V
输出电流 100 mA
供电电流 1.00 mA
通道数 1
针脚数 8
输入电压Max 37 V
输出电压Max 36 V
输出电压Min 2.495 V
输出电流Max 100 mA
工作温度Max 70 ℃
工作温度Min 0 ℃
额定电压 2.495V ~ 36V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
封装 SOIC-8
工作温度 0℃ ~ 70℃ TA
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TL431ACD ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
TL431ACDG 安森美 | 完全替代 | TL431ACD和TL431ACDG的区别 |
TL431ACDT 意法半导体 | 类似代替 | TL431ACD和TL431ACDT的区别 |
